Application of overhead crane in Egyptian pipe factory

We have an overhead crane installation project in Egypt. The customer has customized 6 sets of 10-ton double girder overhead cranes. Today we will share this case with you, hope it will be helpful to you

10 Ton Overhead Crane Specification

• Lifting capacity: 10 Ton
• Lifting height: 9 meters
• Span: 24 meters,
• Voltage: 380V, 50Hz, 3P

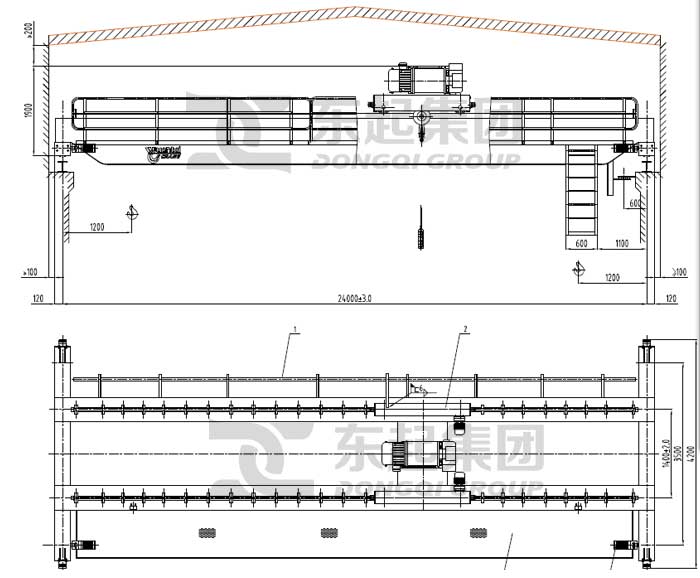

Design scheme of 10 ton overhead crane

The customer built 3 new pipe-making warehouses in Egypt. After understanding the customer’s demand for cranes, we formulated the following design plan for the customer

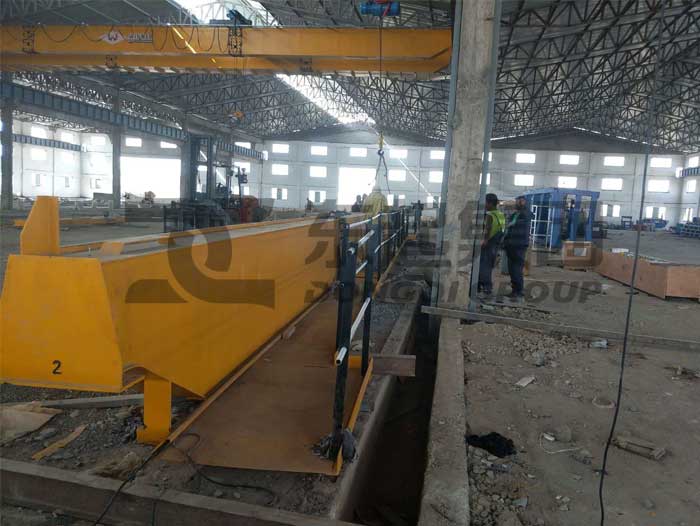

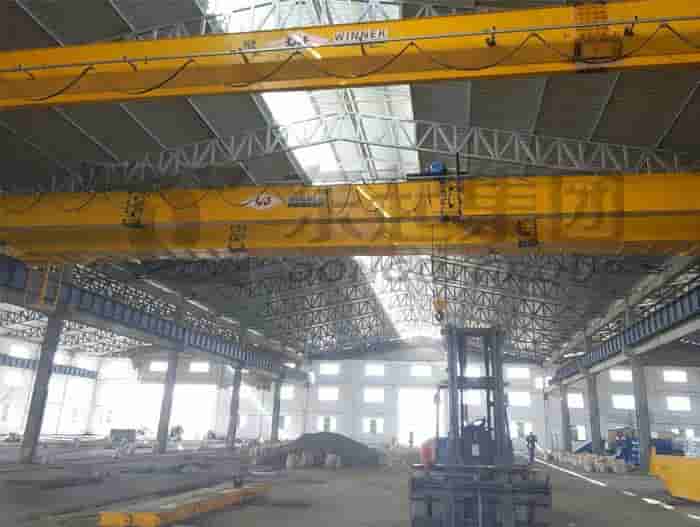

10 Ton Overhead Crane Installation Process

The 6 sets overhead crane will be used in three warehouse:

• Firstly we arrange one small team to lifting the beam, rails on the brackets, then welding them well;
• Secondly we adjust the rail centers distance to ensure the overhead cranes can be settled well;
• Thirdly, we arrange forklift driver to assemble these crane girders together, then asked mobile driver to lift the girders on crane rails well. After that, lifting the hoist trolley on the two main girders.

Until 31th May, 5 sets overhead crane installation have been finished well, the other set will need extra 3 days, after that, Mr Chen will arrange the heavy load to commission the crane and adjust the working stability. After all installation and commission finished, he will teach the workers how to operate and maintain these overhead cranes, everything goes smoothly during the overhead crane installation, commissioning and inspection.

How to customize overhead crane

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a overhead crane, you can leave a message on the website or email, tell us the following information, and our sales manager will contact you:

• Lifting capacity (ton): __ ?( The rated capacity)
• Lifting height (m):__ ? (Height from hook center to the floor)
• Span (m): __ ? (Distance between rail center)
• Lifting speed (m/min): __ ? ( Single, Dual, Variable)
• Traveling distance (m): __ ? (The length of the rail)
• Work duty: __ ? (How many hours a day? How many times an hour?)
• What material to be lifted: __ ?
• Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
