Rmg Type Rail Mounted Container Double Beam Gantry Crane for sale

Table of Contents

Rmg Type Rail Mounted Container Double Beam Gantry Crane Introduction

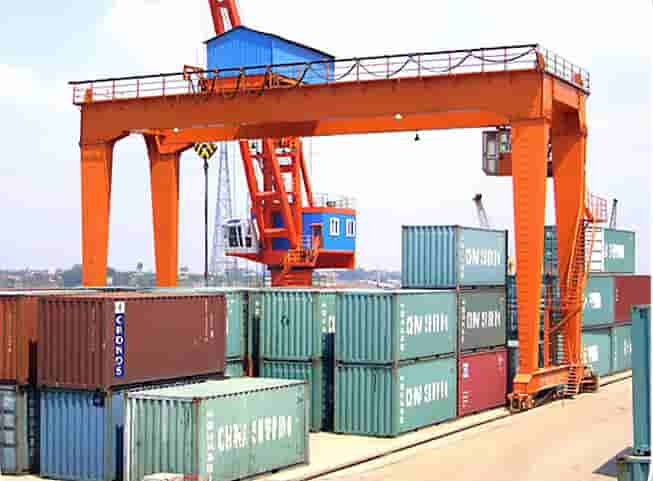

50t-Double-Girder-Container-Gantry-Crane

Port:	Tianjin, China
Production Capacity:	2000sets/Year
Payment Terms:	L/C, T/T, Western Union

Certification:	GS, CE, ISO9001
Condition:	New
Operation Form:	Air Operation+Ground Operation
Maximum Lifting Height:	20-25m
Maximum Lifting Weight:	50-100t
Crane Feature:	Mobile Double Girder Gantry Crane

Rmg Type Rail Mounted Container Double Beam Gantry Crane parameter

Basic Info.

Model NO.

RMG

Main Electrical Parts

Schneider

Color

Client′s Requirement

Crane Type

Rmg Container Gantry Crane

Power Source

3 Phase as Client′s Requirement

Emergency Stop System

Included

Weight Overload Protection Device

Included

Crane Traveling Limited Switch

Included

Working Duty

A5-A8

Voltage Lower Protection Function

Included

Trademark

Dongqi

Transport Package

High Quality Plywood Crates

Specification

China National standard

Origin

Henan, China

HS Code

84261930

Rmg Type Rail Mounted Container Double Beam Gantry Crane Description

Rail-mounted container gantry cranes (RMG) is a specialized yard container handling machine. It can travel on rail by means of the yard power, and lift an stack containers in the yard area with the equipment of the 20' or 40' telescopic spreader (or twin-lift spreader if needed). The RMG has the advantage of being driven by electrical power, clean, bigger lifting capacity, an high gantry traveling speed with cargo. The RMG consists of lifting mechanism, trolley traversing mechanism, gantry mechanism and sway-dampening mechanism.
The lifting, gantry and trolley mechanisms are mostly equipped with AC frequency conversion control system. Normally the lifting mechanism is of the single drum type. It can also be designed to be double drum type if needed. Our corporation can design and manufacture according to demands of user.

Application: container terminals, open storage yards and along the railway lines to load or unload container

Technical Introduction:

1. The electrical equipment is accommodated in robust steel plate control cubicles.

2. All movement can be switched off by actuating the emergency-off switch at the control station via a main contactor.

3. The entire equipment is easy to install and dismantle due to the use of threaded bolts and top-hat rails. Cable inlet from the cable gland.

4. Power supply cable and control cable along the girder

5. A protective earth conductor is fitted as standard, a crane switch is provided.

6. Travel end switches, long and cross travel limited by means of preliminary and final limited switches and overload protection:

Design Structure
It runs on a runway at the floor level. The bridge is supported by a pair of rigid steel legs which are carried by a pair of end trucks along the floor level runway.

Double Girder Gantry Crane Technical data:

Capacity (t)			10					16			20/10					32/10		36/16				50/10
Span (m)			18	22	26	30	35	18	22	30	18	22	26	30	35	22	26	22	26	30	35	35
Lifting height (m)		Main	11.5					10.5		12	10.5					11.5		11.5				12
		Aux.									11					12		12				13
Working class			A5
Speed (m/min)	Lift	Main	8.5					7.9			7.2					7.5		7.8				6
		Aux.									10.4					10.4		10.5				10.4
	Travel	Handcart	43.8					44.5			44.5					41.9		41.9				38.13
		Crane	37.6		40			38		36	38		36			40		40		38		38
Power supply			3-phase 380V 50HZ

Rmg Type Rail Mounted Container Double Beam Gantry Crane After sale

Packaging & Shipping

1. Main girder, ground girder and support legs will be packed by bubble paper;

2. All the electrical parts will be packed by plywood box;

3. Rails will be naked within container.

Our Services

1. Once provide us the requirement, the details technical data and CAD drawing will provide you.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.

FAQ

1. Is your product customized?

Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!

2. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

3. What’s the max lifting capacity of the crane?

Thanks for your question. The max. Lifting capacity of our standard crane are up to 600 ton (the electric hoist are up to 80 t). If this can’t satisfy your working requirement. Please contact us for special customized.

4. The space of my workshop is limited, can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

5. Can the crane work in hazardous environment?

Thanks for your question. .For hazardous environment, please consult our professional sales manager.
