The gantry crane with a lifting capacity of 1 ton is a very small lifting equipment, which is generally used for small machinery, light warehouses and workstations. As a Chinese crane supplier serving the world, we can meet most of the needs of customers for different types of cranes, and our sales managers and engineers provide customers with a full range of personalized crane solutions
Due to various factors such as span, brand, configuration, material, production process, and market demand, it is difficult to directly provide an exact price list for a 1-ton gantry crane based solely on its span. However, based on general market conditions and experience, I can give some approximate price ranges for 1-ton gantry cranes with different spans for your reference. Please note that the following prices are for reference only and may vary due to various factors.
| Span (meters) | Price Range (RMB) |
|---|---|
| 5 | 5,000~8,000 |
| 10 | 8,000~12,000 |
| 15 | 12,000~18,000 |
| 20 | 18,000~25,000 |
| 25 and above | 25,000 and above |
When selecting a gantry crane, besides considering the price factor, you also need to pay attention to the following points:
Finally, it is recommended to communicate with Dongqi Crane before purchasing to obtain detailed quotations and technical parameters so as to make a more informed decision.
A 1-ton gantry crane is a small and practical lifting equipment widely used in factories, warehouses, docks and other places for lifting, handling and moving heavy objects. It usually consists of one or more beams and columns on both sides to form a portal structure, and an electric hoist or manual hoist is installed on the beam to achieve the lifting and lowering of heavy objects.
The design of this crane makes it compact, light and easy to operate. The lifting capacity of 1 ton means that it can safely lift and carry goods weighing no more than 1 ton. The bottom of the gantry crane is usually equipped with wheels, which enables it to move flexibly on the track or on the ground, facilitating operations in different locations.
The control system of the 1-ton gantry crane can be manually operated or electrically controlled, depending on the use requirements. The electric control system usually includes a remote control or a ground control console, which enables the operator to easily control the movement of the crane and the lifting and lowering of heavy objects.
In addition, the 1-ton gantry crane also has good stability and safety. Its structural design is reasonable and can withstand large lateral forces and torques to ensure stability during operation. At the same time, it is also equipped with various safety devices, such as limiters, overload protectors, etc., to ensure the safety of operators and the normal operation of equipment.
There are many tips for you to operate the gantry cranes easily and quickly. The following tips are just for your reference:
As a small gantry crane, the 1-ton gantry crane has two different types. According to the different usage scenarios, it is mainly divided into fixed gantry crane and mobile gantry crane. Each has its own advantages and disadvantages in use. If you want to know more, please contact us, you can use the online chat on the website or send us an email. Email: sales010@cranesdq.com
The fixed 1-ton gantry crane is a lifting equipment designed for workshops, warehouses and other environments. It has the characteristics of stable structure and easy operation. Its main structure consists of beams and legs, forming a stable frame structure that can withstand large loads and ensure safe operation. The beam is equipped with a lifting mechanism, which is usually driven by an electric motor to achieve vertical lifting of goods.
The working principle of this equipment is relatively simple. Through the electrical control system, the operator can easily control the lifting and lowering of the lifting mechanism and (if configured) the horizontal movement of the gantry crane on the track. As an interface for human-machine dialogue, the design of the electrical control system directly affects the quality, efficiency and safety of the lifting operation.
The fixed 1-ton gantry crane plays an important role in workshop production and warehouse management. In the workshop, it is often used for the handling and assembly of parts, which improves production efficiency and flexibility. In the warehouse, it can easily complete the warehousing, outbound and inventory of goods, reducing the cost of manual handling and optimizing inventory management.
In order to ensure the normal operation and service life of the equipment, the operator needs to undergo professional training and be familiar with the equipment performance and safe operating procedures. During the operation, the operating procedures should be strictly followed to avoid dangerous operations such as overloading and diagonal pulling. At the same time, regular maintenance of the equipment, checking the wear of each component, and timely replacement of damaged parts are also the key to ensure the stable operation of the equipment.
In terms of design, the fixed 1-ton gantry crane fully considers safety and environmental protection. Its structure is stable and can withstand large loads to ensure safety during the operation. At the same time, the use of electric energy as a power source has the advantages of being clean and economical, and meets the environmental protection requirements of modern industrial production.

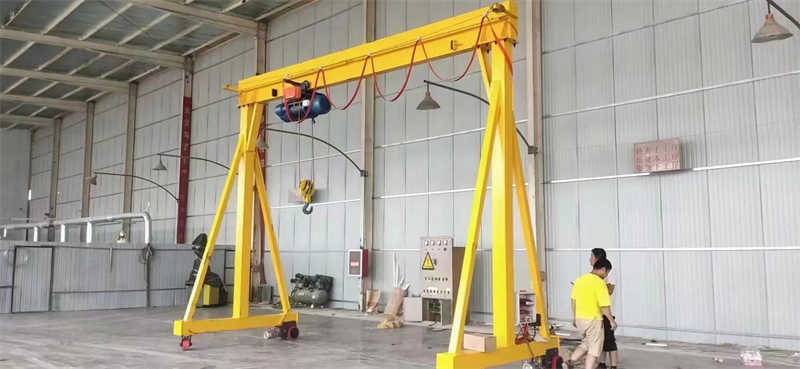

The mobile 1-ton gantry crane is a small lifting equipment with compact structure and flexible operation. It is widely used in many fields such as industry, construction, logistics, etc. Its design allows efficient heavy object handling and loading and unloading operations in workshops, warehouses, construction sites and other places.
The equipment is usually composed of beams, outriggers, walking mechanisms, lifting mechanisms and electrical control systems. The frame structure composed of beams and outriggers is stable and reliable, and can withstand loads of 1 ton or less. The walking mechanism enables the gantry crane to move flexibly on the ground or on tracks to adapt to different working environments. The lifting mechanism is driven by an electric motor or hydraulics to achieve vertical lifting of goods.
The working principle of the mobile 1-ton gantry crane is relatively simple. The operator issues instructions through the electrical control system to control the actions of the lifting mechanism and the walking mechanism, thereby realizing the lifting and movement of the goods. The electrical control system usually has a variety of protection functions, such as overload protection, limit protection, etc., to ensure the safety and reliability of the operation process.
In the field of industrial manufacturing, mobile 1-ton gantry cranes are often used for material handling and assembly, such as moving heavy machinery parts, electronic components, etc. from one workstation to another. On construction sites, it can easily move building materials such as steel bars and wood, improving construction efficiency and safety. In the field of logistics, gantry cranes are widely used for loading and unloading, sorting and warehouse management of goods, improving logistics efficiency by quickly moving heavy objects.
In order to ensure the normal operation and service life of the equipment, mobile 1-ton gantry cranes need to be maintained and serviced regularly. This includes checking the wear of each component, cleaning and lubricating the equipment, and replacing damaged parts. At the same time, operators also need to undergo professional training and be familiar with the performance of the equipment and safe operating procedures to ensure the safety and efficiency of the operation process.
The 1-ton gantry crane plays an important role in multiple application fields. The following is a detailed description of its application field cases:
In the field of industrial manufacturing, 1-ton gantry cranes are widely used in material handling and assembly operations on production lines. For example, in automobile manufacturing plants, gantry cranes are used to lift and carry automobile parts, such as engines, body parts, etc. These parts are usually heavy in weight. Using a gantry crane can significantly improve the handling efficiency, reduce the labor intensity of workers, and ensure the safety of the parts during handling. In addition, in industries such as machinery manufacturing and electronic equipment manufacturing, 1-ton gantry cranes are also commonly used for the transportation and assembly of heavy machinery components.
In the field of logistics and warehousing, 1-ton gantry crane is an important tool for cargo loading, unloading and stacking. Large goods, pallets, cages and other items in the warehouse can be loaded, unloaded and placed efficiently through gantry cranes, optimizing the space utilization of the warehouse and improving management efficiency. Especially in large logistics centers and distribution centers, the use of gantry cranes can greatly increase the turnover speed of goods and reduce logistics costs.
In construction projects, 1-ton gantry cranes are often used to transport building materials, such as steel bars, concrete components, etc. These building materials are usually heavy, and the use of gantry cranes can reduce the risks and labor intensity of manual handling, and improve construction safety and progress. In addition, in construction projects such as bridges and tunnels, gantry cranes are also used to hoist and install heavy equipment or components to ensure the smooth progress of the construction process.
In the field of ship manufacturing and maintenance, 1-ton gantry crane also plays an important role. For example, in the ship manufacturing process, gantry cranes are used to lift and install large components such as hull structures, power systems, and rudder systems. The weight and volume of these components are large, and the use of gantry cranes can ensure the accuracy and safety of the lifting process. At the same time, during ship maintenance and modification, gantry cranes are also used to lift and replace old equipment or components to improve maintenance efficiency and quality.
In addition to the above fields, 1-ton gantry crane is also used in some special occasions. For example, during maintenance and inspection work, gantry cranes can easily move accessories and tools to the required locations, improving work convenience. In addition, in some occasions where heavy objects need to be moved frequently, such as exhibition halls, gymnasiums, etc., gantry cranes are often used to hoist and move heavy equipment or exhibits.
To sum up, the 1-ton gantry crane has a wide range of application cases in many fields. Its superior performance and flexibility make it an important tool in a variety of heavy lifting and loading and unloading operations.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a gantry crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
