We fulfilled 1 order for single girder gantry crane from the Philippines. This is a 10 ton gantry crane, the model is European style, we ship from Qingdao port to Manila, Philippines.
| Main structure | Main girder | Welded box-section beam, mainly uses material Q235B carbon structural steel strong and elegant, easy to maintainThree-layer painting |
| Legs | Q235B carbon structural steel material, box structure design, high safety and rigidity, easy to maintain Three-layer painting |
|
| Lifting mechanism | Low headroom hoist | Inverter traveling speed and dual lifting speed. Reducer, drum, motors Insultation grade F Protection class IP54 |
| Lifting motor | Three-in-one motor Frequency converting control, make the lifting smooth and stable. Totally enclosed type with splash lubrication. Electromagnetic disc type brake system Insulation grade F Protection class IP54. |
|
| Hoist travelling motor | ||
| Drum | Self-produced. Drums made of high- quality seamless steel processed by CNC machine. | |
| Wire rope | Rope structure 8×26SW, steel core and galvanized. | |
| Rope guide | High strength nylon material, installed on the winding drum to guide the wire rope,Prevent constant winding of steel wire and prolong the life of the drum | |
| Hook | Rotating forged type with safety latch | |
| Bearing | High rotation accuracy and durability | |
| Crane travelling mechanism | End carriages | Q235B carbon structural steel with quality wheels and powerful motor. Three-layer painting. |
| Crane travelling motor | Crane traveling motor Three-in-one Protection class IP54 |
|
| Protection system | Overload limiter | Under overload condition, cut off the power of the crane, the screen can show the weight of lifting items. |
| Buffers | Polyesteramide material, used for anti-collision | |
| Other protection | Phase-break protection, no-voltage protection, over-current protection | |
| Electric parts | Electric Cabinet | Main contactors are ABB brand and CHNT brand |
| Aviation plug | Easy to connect when installing | |
| Frequency converter | Inovance brand, Chinese famous brand. Control the lifting and travelling motor, change the motor speed. | |
| Pendant control | Button: Up and down; left and right; front and back; start and stop; emergency; Safe and reliable Protection class IP65 |
|
| Festoon cable | C-track festoon cable to supply power for the trolley and hoist, safe, reliable and flexible. |

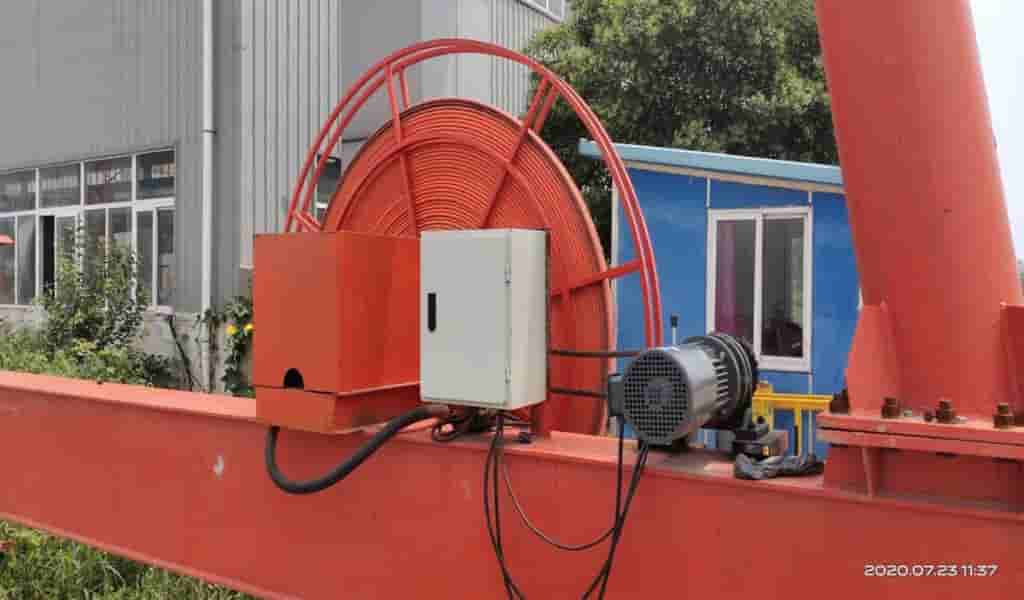

(The above picture is for reference to crane model only)
In addition to the advantages of ordinary single-beam cranes, European-style single-girder cranes adopt low-headroom design in design concept, which can effectively increase the transportation space, and the unique C-shaped structure increases the hoisting space accordingly. In terms of appearance, it is European-style design, light in weight, and can be programmed to lift the limit to achieve comprehensive protection. In terms of performance, it has stable startup and operation, no impact, good mute effect, and reduced noise pollution; and low failure rate, which can reduce maintenance costs and prolong service life. In the system composition, there is a hard tooth surface reducer, which has high bearing capacity and long service life; semi-grease lubrication and high-strength galvanized anti-rust steel wire rope, maintenance-free; and a three-in-one drive of motor, brake and reduction box
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
Design and Construction Rules
All required standards for cranes are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
— 89/392/EEC standard (93/68/EEC)
— 91/368/EEC standard
— 73/23/CEE standard
— “EMC” standard 89/336/EEC
— EN 60204-1
— EN 292 mechanical safety
— ISO 2141
— ISO 2766
International Standards
— June 9, 1993 / Sept. 22, 1993 notice
— July 29, 1992, 92-765, 92-766, 92-767 notice
— DIN 5684
— DIN 15400; DIN 15401
— NFE 26-010
— NFE 26-030
Technical Standards
— FEM 9.511 Mechanical group
— FEM 9.661 Hoisting and traveling components size and quality standard
— FEM 9.671 Wire rope quality standard
— FEM 9.681 Travel motor choice
— FEM 9.682 Hoisting motor choice
— FEM 9.755 Electric hoisting equipment
— FEM 9.811 Electric crane standard
— FEM 9.901 Hoisting components design reference
— IEC 34-1 Traveling and allocation performance
— IEC 34-5 Protection grade standard
— IEC 947-5-1 Low voltage equipment
China Main National Standards
Design rules for cranes GB/T 3811-2008
Safety rules for lifting appliances GB 6067-2010
Common crane technical condition GB 7592-87
Crane-Overhead travelling crane and portal bridge crane
tolerances for manufacture and tracks laying GB/T 10183-2010
Crane-test code and procedures GB/T 5905-2011
General Bridge crane GB/T 14405-2011
Portal Crane GB/T 14406-2011
Crane & Lift Equipment Technical Performance and Acceptance Condition GB/T 17908-1999
Electrical installation and acceptation standard GBJ 232-82
Safety of Machinery – Electrical Equipment of Machines
Part 32: Requirements for hoisting machines GB 5226.2-2002
Electrical installation and acceptance standard GB 50256-96
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a gantry crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
