10 ton single beam gantry crane solves problems for Pakistan's construction industry

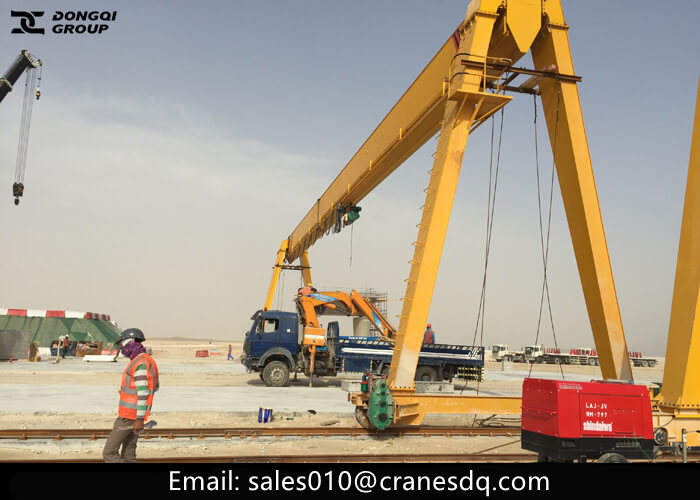

Single girder gantry cranes are widely used in Pakistan. From coal mines to maintenance factories, port warehouses especially need gantry cranes to help transport containers and other goods. The case we are sharing today comes from a road bridge construction site in Pakistan. The customer needed a customized single girder gantry crane to help carry construction materials.

Main parameters of Pakistan 10 ton gantry crane

• Lifting Capacity: 10 ton
• Span Range: 25m
• Lifting Height: 20m
• Electric Hoist: CD1 Wire Rope Electric Hoist
• Hoist Travelling Speed: 20-30 m/min
• Power Supply: 380V/50HZ/3Phase
• Usage: Lifting and handling construction materials

Structural Design of 10 Ton Gantry Crane in Pakistan

• Single girder 10 ton gantry crane consists of 5 main parts, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment.
• Mechanical Part: Main girder with U template and range of welding surface into the composite beams. Use the high quality carbon steel of Q235B or Q345B. The main girder and end beams are connected with the high strength bolt of 10.9 grade. The Crane travelling mechanism uses trinity drive.
• Electric System: Module control speed, micro-speed and double speed. Traveling and lifting smoothly. The power for trolley moving adopts flat cable, sliding smoothly.
• Protection Devices: Preventing hook clashing the top. Circuit self-test protection device. Outdoor gantry cranes are equipped with hoisting mechanism, electrical control box and rainproof devices. Anti-collision, sound and light alarm devices. Equipped with rail clamp.
• Controlling Ways: Crane control operation. Generally, ground controlling. Cab controlling is also available according to customer's requirement. Operating cab: open style and close style, left or right installation.

10 Ton Gantry Crane Features:

• 10 ton gantry crane with single girder are fitted with crane duty motors and are suitable for frequent starting, reversing and braking.
• Gantry crane 10 ton capacity allows easy installation and maintenance with reliable operation, ducted wiring and compact terminals.
• Gantry cranes are also provide with motor overload protection that helps in preventing the condition of overloading.
• Single girder 10 ton gantry crane for sale has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
• Widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
• 10 ton gantry crane for sale can be customized design to meet our clients’ any requirement.

Other different types of gantry crane cases in Pakistan

• 16 ton European-spec Double Girder Gantry Crane (MGO) for sale to Pakistan
• Truss Gantry Crane Applied in Pakistan Bridge Construction
• 10 ton single beam gantry crane solves problems for Pakistan’s construction industry
• How do overhead cranes and gantry cranes help cement plants solve handling problems
• Pakistan Cement Plant Customizes Gantry Crane from China
• 20 ton gantry crane used in Pakistan road construction
• L-leg gantry crane made in China is used in Pakistan steel coil factory
• The 32 ton gantry crane customized from China was installed in Pakistan
• How to send 25t gantry crane to Pakistan
• 40 ton container gantry crane is sold from China to Pakistan
• How to buy a 25 ton Single beam hoist gantry crane in Pakistan
• Gantry crane for sale Pakistan

How to customize gantry crane from China

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a gantry crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:

• Lifting capacity (ton): __ ?( The rated capacity)
• Lifting height (m):__ ? (Height from hook center to the floor)
• Span (m): __ ? (Distance between rail center)
• Lifting speed (m/min): __ ? ( Single, Dual, Variable)
• Traveling distance (m): __ ? (The length of the rail)
• Work duty: __ ? (How many hours a day? How many times an hour?)
• What material to be lifted: __ ?
• Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
