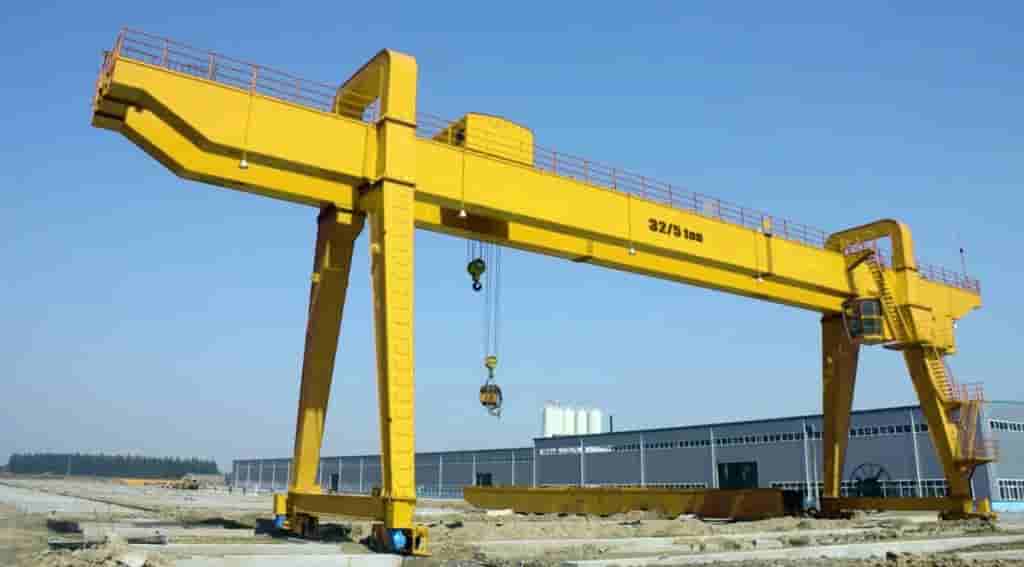

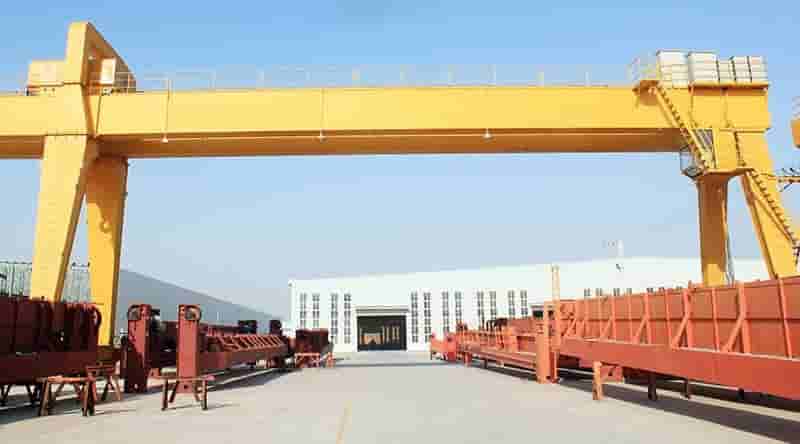

We have completed the installation of a set of double-girder gantry cranes in Poland. This is a set of MG type 20 ton gantry cranes, which are shipped from Qingdao port to Gdynia port by sea. MG type double-girder gantry crane is mainly used for loading, unloading and handling materials on open storage yards. The lifting capacity is large, and the operation form is divided into two types: ground and driver's cab. The gantry crane has the advantages of simple structure, convenient maintenance and light weight. The double main girder gantry crane has the characteristics of strong bearing capacity, large span and good overall stability.
Note:
| Lifting capacity | t | 20 | ||
| Lifting height | m | 9 | ||
| Span | m | 10 | ||
| Cantilever | Left | m | 3 | |
| Right | 3 | |||
| Speed | Trolley traveling speed | m/min | 35 | |
| Crane traveling speed | 45 | |||
| Lifting speed | 7.2 | |||
| Working class | / | M5 | ||
| Power supply | V/Hz | 380v, 3phase, 50hz | ||
| Trolley traveling power | KW | 2.5*2 | ||
| Crane traveling power | 5.5*2 | |||
| Hoisting power | 26 | |||
| Total power | 42 | |||
| Total Weight | kg | 25600 | ||
| Max wheel load | KN | 232 | ||
| Protection class | / | IP54 | ||
| Insulation grade | / | F | ||
| Ambient temperature | / | -20℃ ~ +40℃ | ||
Note: Recommended Rail Specification
| Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) |
| P38 | 68 | 114 | 134 | 38.73 |
(The above picture is for reference to crane model only)
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
Design and Construction Rules
All required standards for cranes are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
-- 89/392/EEC standard (93/68/EEC)
-- 91/368/EEC standard
-- 73/23/CEE standard
-- "EMC" standard 89/336/EEC
-- EN 60204-1
-- EN 292 mechanical safety
-- ISO 2141
-- ISO 2766
International Standards
-- June 9, 1993 / Sept. 22, 1993 notice
-- July 29, 1992, 92-765, 92-766, 92-767 notice
-- DIN 5684
-- DIN 15400; DIN 15401
-- NFE 26-010
-- NFE 26-030
Technical Standards
-- FEM 9.511 Mechanical group
-- FEM 9.661 Hoisting and traveling components size and quality standard
-- FEM 9.671 Wire rope quality standard
-- FEM 9.681 Travel motor choice
-- FEM 9.682 Hoisting motor choice
-- FEM 9.755 Electric hoisting equipment
-- FEM 9.811 Electric crane standard
-- FEM 9.901 Hoisting components design reference
-- IEC 34-1 Traveling and allocation performance
-- IEC 34-5 Protection grade standard
-- IEC 947-5-1 Low voltage equipment
China Main National Standards
Design rules for cranes GB/T 3811-2008
Safety rules for lifting appliances GB 6067-2010
Common crane technical condition GB 7592-87
Crane-Overhead travelling crane and portal bridge crane
tolerances for manufacture and tracks laying GB/T 10183-2010
Crane-test code and procedures GB/T 5905-2011
General Bridge crane GB/T 14405-2011
Portal Crane GB/T 14406-2011
Crane & Lift Equipment Technical Performance and Acceptance Condition GB/T 17908-1999
Electrical installation and acceptation standard GBJ 232-82
Safety of Machinery - Electrical Equipment of Machines
Part 32: Requirements for hoisting machines GB 5226.2-2002
Electrical installation and acceptance standard GB 50256-96
