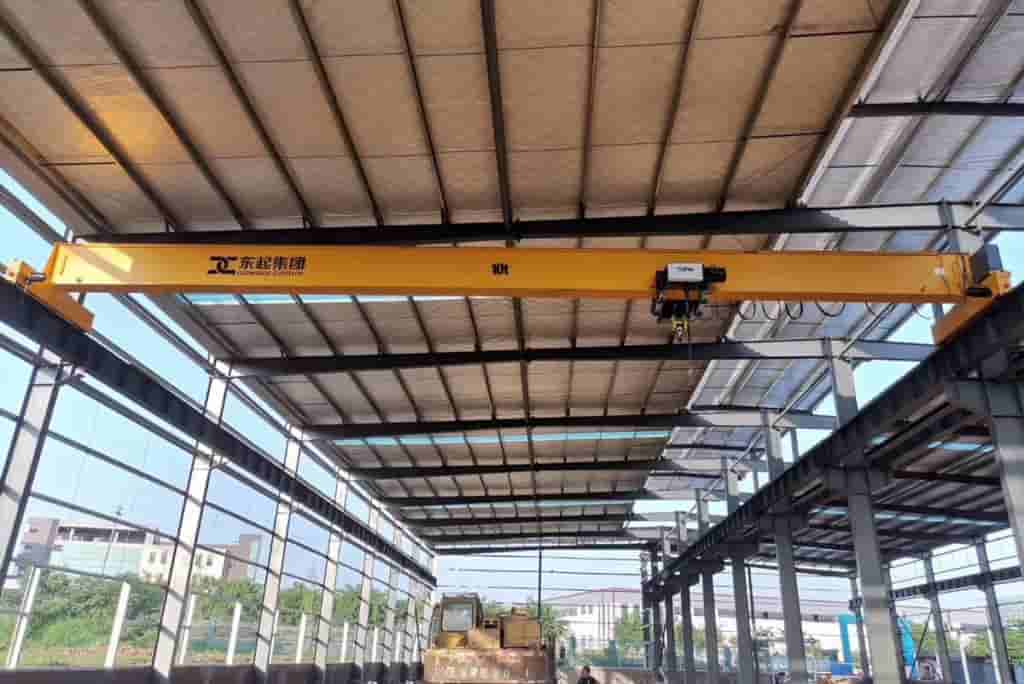

We have completed the installation of 1 set of 3 ton Overhead Crane in the United States. This is a set of European-spec Single Girder Overhead Crane. For many customers, the single girder bridge type has high flexibility and is suitable for multiple batches and less Flexible production mode for batches. Improve the comprehensive automation level of single-girder overhead cranes, so that single-girder overhead cranes have good speed regulation and static characteristics to meet the needs of automated production.
Note:
| Lifting capacity | t | 3 | ||
| Lifting height | m | 9.144 | ||
| Span | m | 12.192 | ||
| Speed | Cross traveling speed | m/min | 2-20 (inverter control) | |
| Crane traveling speed | 2-20 (inverter control) | |||
| Lifting speed | 0.8-5.0 (inverter control) | |||
| Working class | / | FEM2M (ISO M5) | ||
| Power supply | V/Hz/Ph | 480/60/3 | ||
| Cross traveling power | KW | 0.37 | ||
| Crane traveling power | 2*0.37 | |||
| Hoisting power | 3.0 | |||
| Total power | 4.11 | |||
| Max wheel load | KN | 23.5 | ||
| Total weight | Kg | 2350 | ||
| Protection class | / | IP54 | ||
| Insulation grade | / | F | ||
| Ambient temperature | / | -20℃~+40℃ | ||
| Anti-collision system | / | Included | ||
| Phase protection relays | / | Included | ||
| Limit switch | / | Included | ||
| Voltage Low Protect device | / | Included | ||
| Emergency stop action | / | Included | ||
| Ground fault protection | / | Included | ||
| Short-circuit protection | / | Included | ||
| Over-heating protection | / | Included | ||
| Power-off protection | / | Included | ||
| Over-current protection | / | Included | ||
| Overload protector | / | Included | ||
| Top Quality Buffer | / | Included | ||
| Cross Power | / | Festoon Cables | ||
| Country of Origin | China | |||
Recommended Crane Rail Specification (not included in the offer)
| Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) |
| P18 | 40 | 80 | 90 | 18.06 |

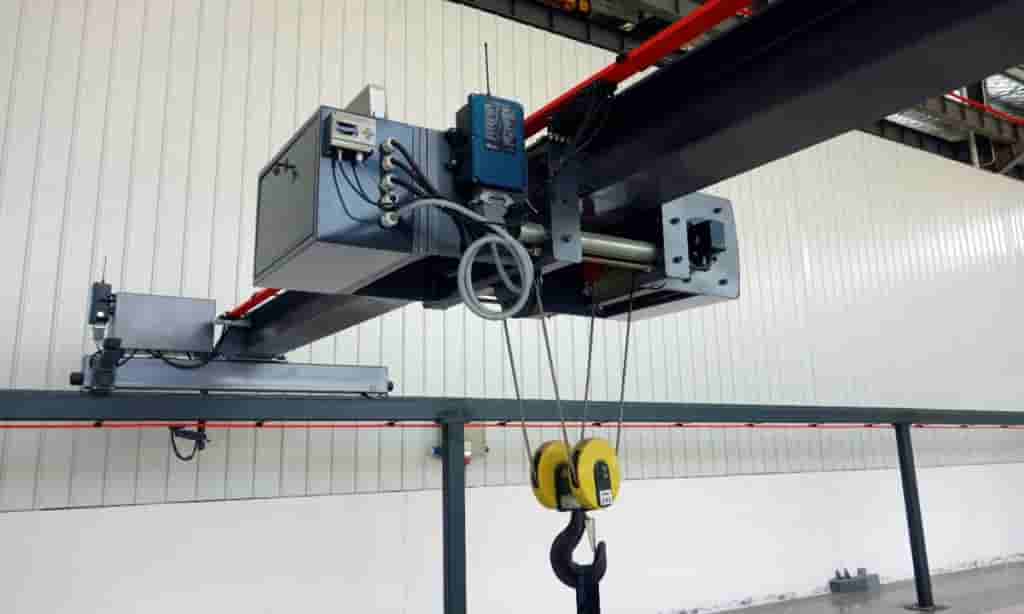

(The above picture is for reference to crane model only)
European-spec Single Girder Overhead Crane has advanced technology and is designed in accordance with international standards: DIN (Germany), FEM (Europe), ISO (International). It has the advantages of strong rigidity, light weight and outstanding structural design, which can effectively save plant space and Investment cost, unique walking structure characteristics, is your best choice.
European-spec Single Girder Overhead Crane is widely used in workshops, warehouses and other material handling occasions in machinery manufacturing, metallurgy, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries. It is especially suitable for material handling, precision assembly of large parts and other occasions that require precise positioning, and the working environment temperature is -25-40 ℃.
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
