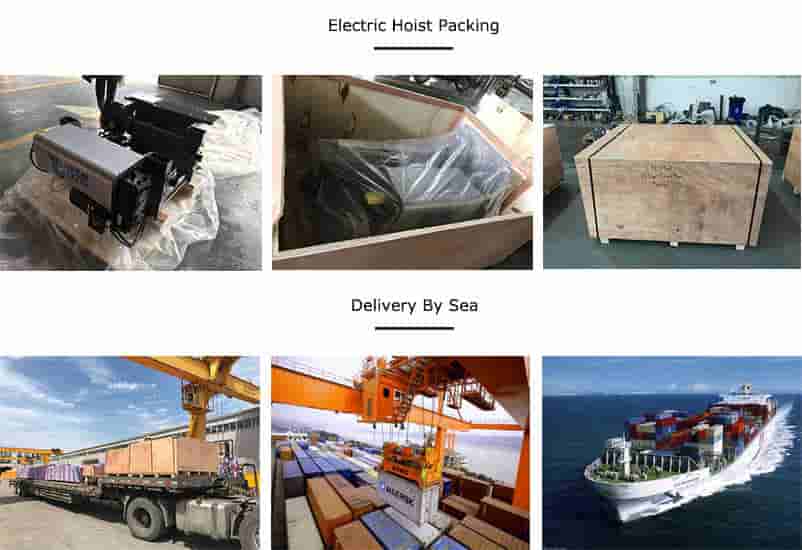

We have completed 1 order of electric wire rope hoist from Mauritius. The customer needs an electric hoist with a lifting capacity of 3 tons. After communication, we finally designed this 3-ton European-style electric wire rope hoist for the customer, which is a low-headroom hoist that uses an ABM motor. We send electric hoists from Qingdao port to Mauritius.
| Rated lifting capacity | t | 3 | |
| Lifting height | m | 20 | |
| Speed | Hoist traveling speed | m/min | 5~20 (inverter control) |
| Lifting speed | (Double speed) | ||
| Working class | / | FEM 2M | |
| Power supply | V/Hz/Ph | 440V 60Hz 3Ph | |
| Control voltage | V | 36 | |
| Hoist traveling power | KW | 0.4 | |
| Hoisting power | 11 | ||
| Total power | 11.4 | ||
| Recommended track width | mm | 200-400 | |
| Wire rope diameter | mm | 11 | |
| Total Weight | kg | 580 | |
| Protection class | / | IP55 | |
| Insulation grade | / | F | |
| Ambient temperature | / | -20℃-+40℃ | |
| Control method | / | Remote control | |
| Country of origin | / | China | |
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a electric hoist, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
