5 Ton Double Girder EOT Crane Design Specification

Table of Contents

5 Ton EOT Crane Lifting Capacity		t	5
5 Ton EOT Crane Span		m	1 0.5m - 31m								1 0.5m - 31m
5 Ton EOT Crane Lifting Height			16								1 6
5 Ton EOT Crane Work Class			A5								A6
Speed	Hoisting	m/min	9.2								12.6
	Trolley Travelling		37.2								37.2
	Crane Travelling		68.4			69					90.6			92.8
limt dimenslion	S1		800
	S2		1250

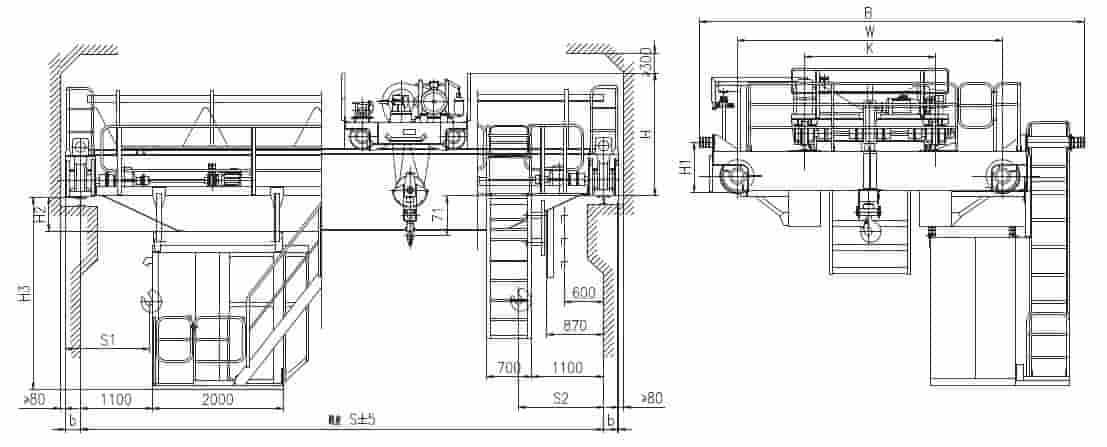

main dimenstion	H	mm	1763
	H1		765													800
	H2		24	126	226 2646	376	526	676	826	976	24	1 26	226	376	526	676	826	976
	H3		239	2546		2796	2946	3096	3246	3396	2396	2546	2646	2796	2946	3096	3246	3396
	K		1400
	W		3400			3550		5000			3400			3550		5000
	B		5224			5374		6174			5374			5378		6078
	b		230
Max. Wheel Loading		kN	72	78	84	92	97	109	11 7	1 24	73	79	85	93	98	1 10	118	125
Motor Power		kw	22.8					27.4			27.8					31.8
Crane Rail			43kg/m
Power Supply			3-Phase A.C. 50/60Hz 220-660V

About 5 Ton Double Girder EOT Crane Design Specification

If you plan to purchase a Double Girder EOT Crane, the following parameters need to be paid special attention to:

Lifting capacity: This is the main parameter of bridge cranes, which need to be classified according to the lifting capacity in practical applications.
Span: refers to the horizontal distance between the center lines of the operating rails of bridge type cranes, in meters.
Lifting height: refers to the vertical distance from the top surface (or ground) of the crane's operating track to the extreme position on the retrieval device, in meters.

In addition, there are also some parameters that need to be noted, such as working level, working temperature, etc. Work level refers to the degree of workload of a crane, usually represented by A3~A4, with A3 being the lowest and A4 being the highest. The working temperature refers to the ambient temperature range for normal operation of a crane, usually between -25 ℃ and+40 ℃.

When purchasing a 5-ton double beam bridge crane, in addition to the above parameters, it is also necessary to consider factors such as the manufacturer's service and reputation, as well as the warranty period and maintenance of the equipment.

Double Girder EOT Crane Specification

How to customize Double Girder EOT Crane from China

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Double Girder EOT Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:

Lifting capacity (ton): __ ?( The rated capacity)
Lifting height (m):__ ? (Height from hook center to the floor)
Span (m): __ ? (Distance between rail center)
Lifting speed (m/min): __ ? ( Single, Dual, Variable)
Traveling distance (m): __ ? (The length of the rail)
Work duty: __ ? (How many hours a day? How many times an hour?)
What material to be lifted: __ ?
Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
