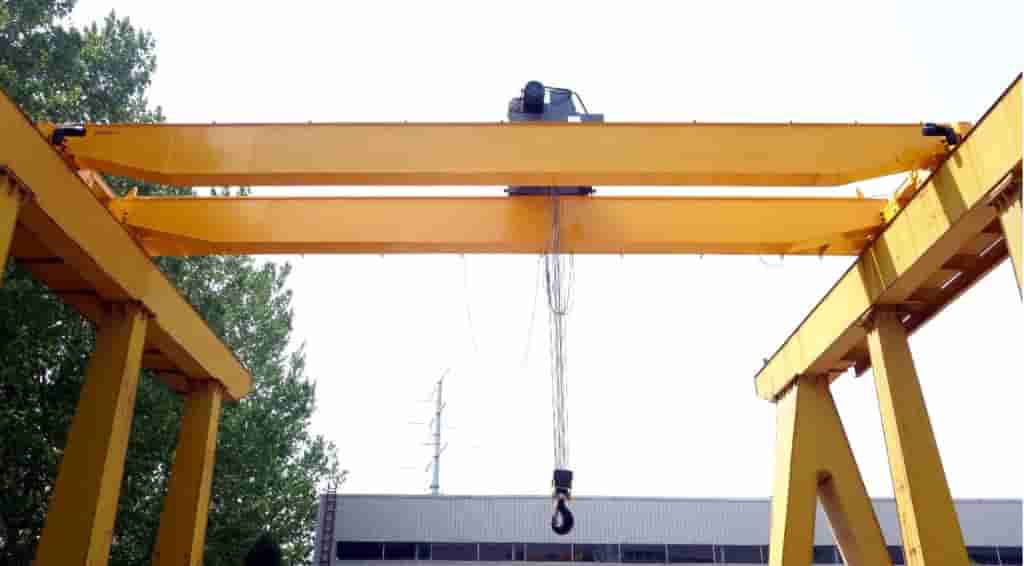

This time, what we sold to Oman is a double-girder overhead crane, the model is QDX. This type of crane is designed with a single platform, which is safe to maintain and easy to use. This crane is suitable for lifting long pieces of materials (timber, paper tubes, pipe seals, bars, etc.) in workshops or open warehouses of factories and mines.
| Item | Double Girder Overhead Crane | ||
| Rated capacity | t | 50 | |
| Lifting height | m | 8.3 | |
| Span | m | 20 | |
| Speed | Trolley traveling speed | m/min | 2.0~20 (Inverter control) |
| Bridge traveling speed | 2.0~20 (Inverter control) | ||
| Main hook lifting speed | 0.3~3.0 (Inverter control) | ||
| Working class | / | FEM 2M | |
| Power supply | V/Hz | 415/3/50 | |
| Trolley traveling power | KW | 2*2.2 | |
| Bridge traveling power | 4*1.5 | ||
| Hoisting power | 30 | ||
| Total power | 40.4 | ||
| Total Weight | t | 28.4 | |
| Max wheel load | KN | 179.1 | |
| Protection class | / | F | |
| Ambient temperature | / | -20℃ ~ +40℃ | |
| Electrics (contactors) | / | Schneider contactors | |
| Motor | / | SZW brand | |
| Hook type | / | With spring loaded Safety Latch and should have 360° rotation. | |
| Steel Material | / | Q235B | |
| Color | / | Bright yellow | |
| Anti-collision system | / | Included | |
| Phase protection relays | / | Included | |
| Limit switch | / | Included | |
| Voltage Low Protect device | / | Included | |
| Emergency stop action | / | Included | |
| Ground fault protection | / | Included | |
| Short-circuit protection | / | Included | |
| Over-heating protection | / | Included | |
| Power-off protection | / | Included | |
| Over-current protection | / | Included | |
| Overload protector | / | Included | |
| Top Quality Buffer | / | Included | |

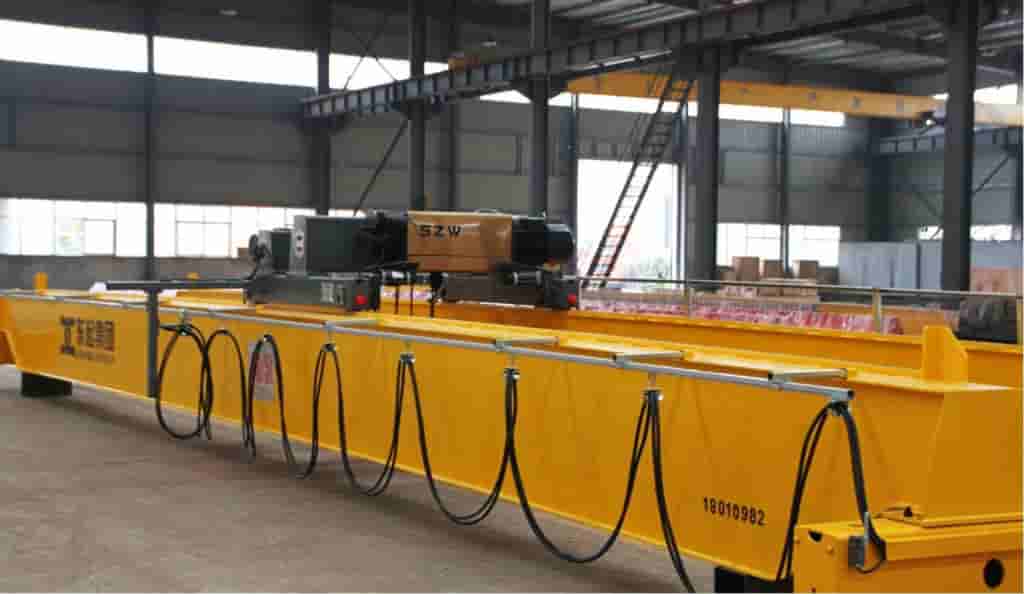

| Cross Power | / | C Track Festoon Cables | |
| Country of origin | / | China | |
| Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) |
| P43 | 70 | 114 | 140 | 44.653 |
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Overhead Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
