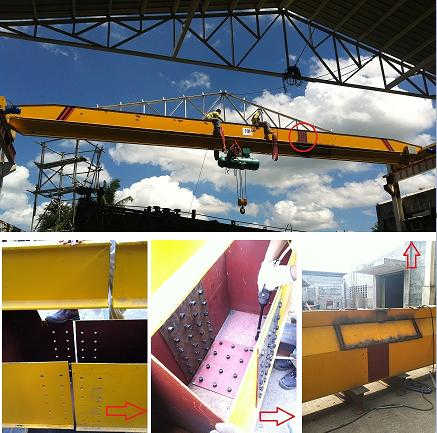

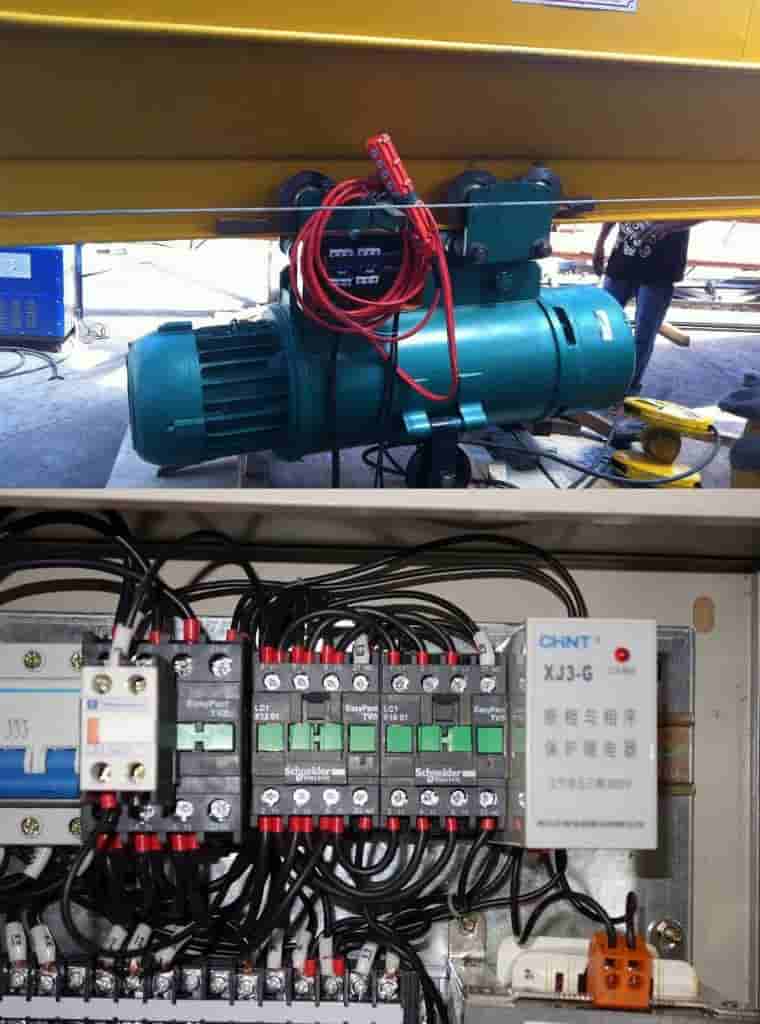

We completed the installation of 1 single girder overhead crane in the Philippines. This is a LD type 7-ton single-girder bridge crane. In terms of structure, we use Main material Q235B carbon structural steel for the main beam, strong and elegant, easy to maintain, three-layer painting. Q235B carbon square steel structure was used for the end beams, providing horizontally travelling for the crane with three-in-one motors and buffers.
Note:
Rated capacity | t | 7 | |
Testing capacity | 8.75 | ||
Lifting height | m | 9 | |
Span | m | 15 | |
Speed | Trolley travelling speed | m/min | 20 |
Crane travelling speed | 20 | ||
Lifting speed | 7 | ||
Working class | / | A4 | |
Power supply | V/Hz/Phase | 220/60/3 | |
Trolley travelling power | KW | 0.8 | |
Crane travelling power | 2*1.5 | ||
Hoist power | 7.5 | ||
Total power | 11.3 | ||
Total weight | t | 6.894 | |
Max wheel load | KN | 42.2 | |
Total wheels | / | 4 | |
Insulation class | / | F | |
Working ambient temperature | / | -20℃~+40℃ | |
Country of origin | / | China |
Recommended Crane Rail Specification (not included in this offer)
Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) |
P24 | 51 | 92 | 107 | 24.46 |

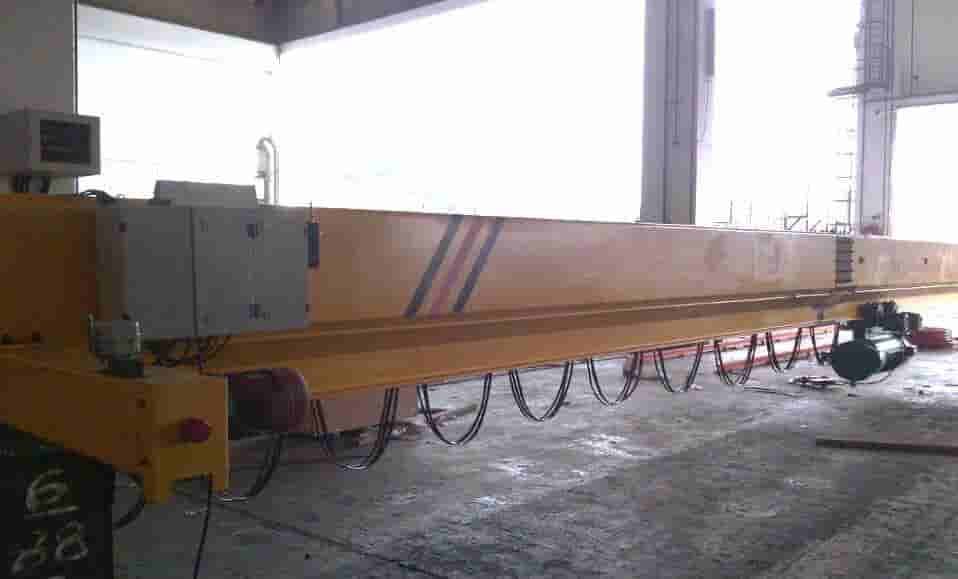

(The above picture is for reference to crane model only)
The main girder of LD type electric single-girder overhead crane adopts box-shaped main girder, off-track form, and a special trolley is used together with CDⅠ, MDⅠ and other electric hoists. The applicable lifting weight is 1-10t, the applicable span is 10.5-25.5 meters, and the working environment temperature is in the range of -25-+40℃. Single-girder overhead cranes are widely used in workshops, warehouses, stockyards, etc. in machinery manufacturing workshops, metallurgical workshops, ports, railways, logistics, assembly, papermaking, building materials, electronics and other industries. It is widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments.
