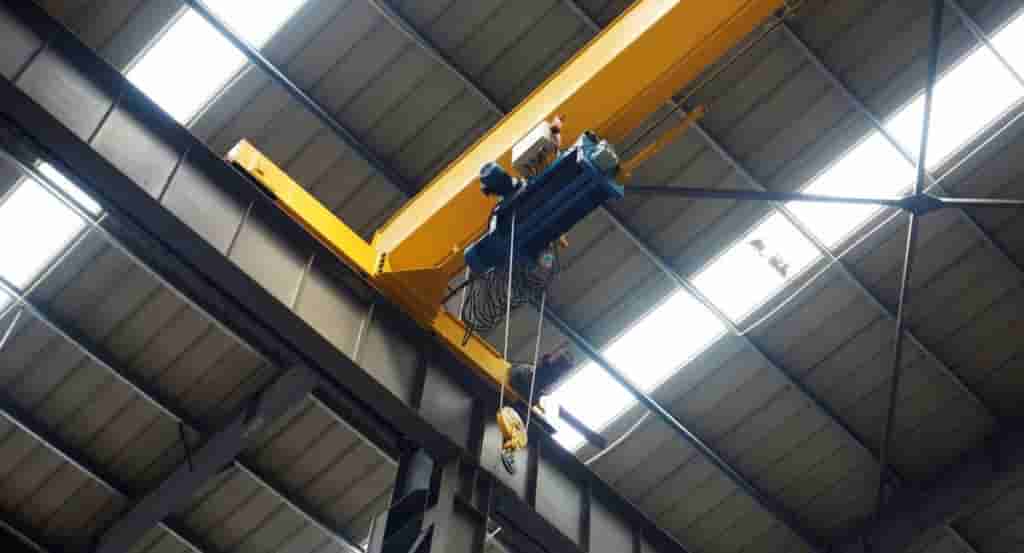

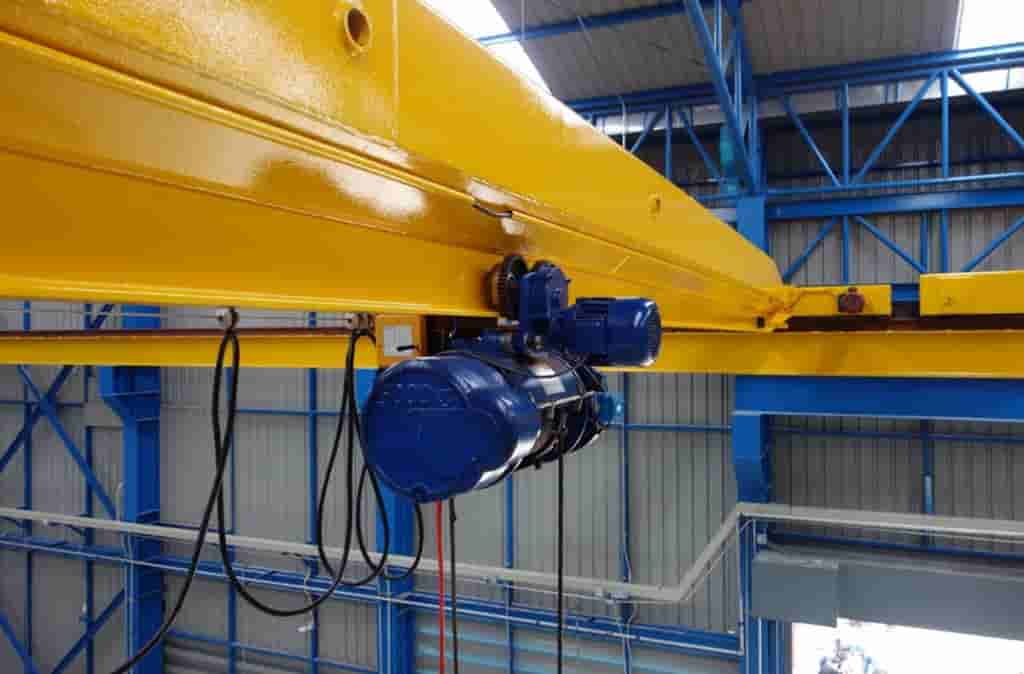

We installed a set of 7t Single Girder Overhead Crane in the Philippines. Main material Q235B carbon structural steel, strong and elegant, easy to maintain. Three-layer painting. As span is 15meters, in order to fit in container, the main girder will be disconnected and reconnected using high-strength bolts provided by our factory.
| Rated capacity | t | 7 | |
| Testing capacity | 8.75 | ||
| Lifting height | m | 9 | |
| Span | m | 15 | |
| Speed | Trolley travelling speed | m/min | 20 |
| Crane travelling speed | 20 | ||
| Lifting speed | 7 | ||
| Working class | / | A4 | |
| Power supply | V/Hz/Phase | 220/60/3 | |
| Trolley travelling power | KW | 0.8 | |
| Crane travelling power | 2*1.5 | ||
| Hoist power | 7.5 | ||
| Total power | 11.3 | ||
| Total weight | t | 6.894 | |
| Max wheel load | KN | 42.2 | |
| Total wheels | / | 4 | |
| Insulation grade | / | F | |
| Protection class | IP54 | ||
| Working ambient temperature | / | -20℃~+40℃ | |
| Country of origin | / | China | |
Recommended Crane Rail Specification (not included in this offer)
| Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) |
| P24 | 51 | 92 | 107 | 24.46 |

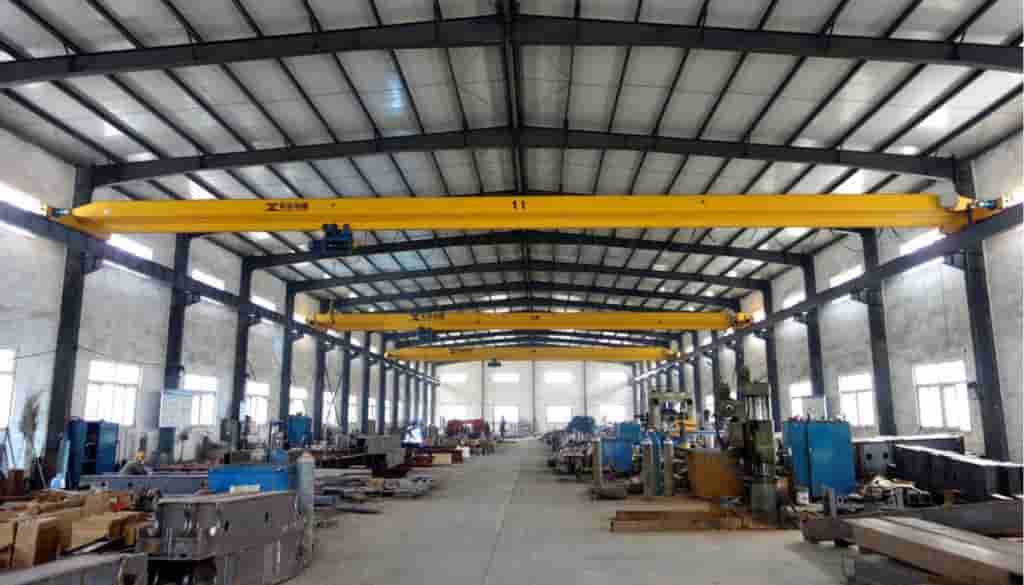

(The above picture is for reference to crane model only)
The main girder of LDP type electric single-girder overhead crane adopts box-shaped main girder, off-track form, and a special trolley is used together with CDⅠ, MDⅠ and other electric hoists. The applicable lifting weight is 1-10t, the applicable span is 10.5-25.5 meters, and the working environment temperature is in the range of -25-+40℃. Single-girder overhead cranes are widely used in workshops, warehouses, stockyards, etc. in machinery manufacturing workshops, metallurgical workshops, ports, railways, logistics, assembly, papermaking, building materials, electronics and other industries. It is widely used in factories, warehouses, stockyards and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive medium environments.
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
Design and Construction Rules
All the standards required for the cranes are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
— 89/392/EEC standard (93/68/EEC)
— 91/368/EEC standard
— 73/23/CEE standard
— “EMC” standard 89/336/EEC
— EN 60204-1
— EN 292 mechanical safety
— ISO 2141
— ISO 2766
International Standards
— June 9, 1993 / Sept. 22, 1993 notice
— July 29, 1992, 92-765, 92-766, 92-767 notice
— DIN 5684
— DIN 15400; DIN 15401
— NFE 26-010
— NFE 26-030
Technical Standards
— FEM 9.511 Mechanical group
— FEM 9.661 Hoisting and traveling components size and quality standard
— FEM 9.671 Wire rope quality standard
— FEM 9.681 Travel motor choice
— FEM 9.682 Hoisting motor choice
— FEM 9.755 Electric hoisting equipment
— FEM 9.811 Electric crane standard
— FEM 9.901 Hoisting components design reference
— IEC 34-1 Traveling and allocation performance
— IEC 34-5 Protection grade standard
— IEC 947-5-1 Low voltage equipment
China Main National Standards
Design rules for cranes GB/T 3811-2008
Safety rules for lifting appliances GB 6067-2010
Common crane technical condition GB 7592-87
Crane-Overhead travelling crane and portal bridge crane
tolerances for manufacture and tracks laying GB/T 10183-2010
Crane-test code and procedures GB/T 5905-2011
General Bridge crane GB/T 14405-2011
Portal Crane GB/T 14406-2011
Crane & Lift Equipment Technical Performance and Acceptance Condition GB/T 17908-1999
Electrical installation and acceptation standard GBJ 232-82
Safety of Machinery – Electrical Equipment of Machines
Part 32: Requirements for hoisting machines GB 5226.2-2002
Electrical installation and acceptance standard GB 50256-96
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Overhead Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
You can either fill out the contact form or send us an email. After receiving your inquiry, we will contact you as soon as possible and provide you with a suitable offer.
