With the vigorous development of the new energy vehicle industry, there are more and more new energy vehicle assembly and production plants in the world, and the output is getting larger and larger. As a light and small lifting equipment, the electric chain hoist has been used in the automotive industry for a long time. . The electric chain hoist in this case is a double hook hoist of our company, which has the function of raising and lowering at the same time, which can effectively assemble the front of the car.

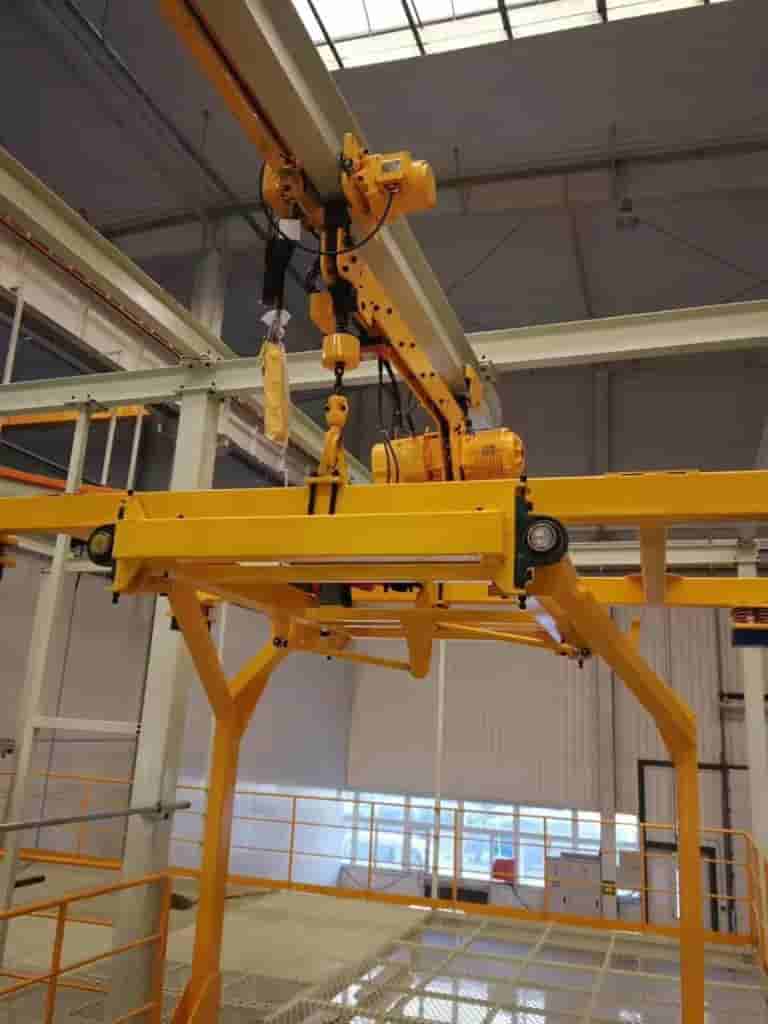

The hoist in this case is a set of 2-ton electric hoist with double hooks. It has the characteristics of stable lifting, compact structure, high reliability, strong functionality and high cost performance. After comprehensive comparison, the user has determined to choose this style of double hook hoist.
Electric chain hoists are light and small hoisting equipment, with tonnage ranging from 125Kg-35t, single-speed, double-speed, frequency conversion speed regulation, etc. are produced. As a mature lifting equipment light crane, it can be used in many fields of daily production and life. , can provide customers with complete material conveying system solutions.
Customer requirements: The customer needs to hoist the head shell as a whole in the workshop, lower and assemble it at a fixed position, and turn and rotate on the track. The turning radius is 5m, the operation needs to be stable, and the lower the speed, the better.
Solution: According to the specific needs put forward by customers, we refer to two hoist lifting and single hoist double hook lifting schemes in the selection. After consideration, we choose double hook electric hoist to ensure the synchronization of customer lifting. Anti-collision limit blocks need to be installed between each group of hoists, a total of 6 groups of hoists. The specific plans are as follows:
The length of the hoisting area in the workshop is 80m, and the hook spacing is 1.5m. A total of 10 sets of hoists are selected. The lifting weight is about 1.5t. A maintenance platform is also set up. When there are special working conditions, the hoist that needs maintenance can be driven to the maintenance platform without affecting the overall use. The power supply system adopts the sliding wire distribution method, and the overall circuit adopts the tubular circuit structure for subsequent maintenance.
The whole project went through a one-month construction period, including installation, commissioning and other links. When it was delivered to users, it was well received by users. Users have also used electric chain hoists before, but the hoists have not been effectively used and developed before, and all of them have not played their due role. Through the design, construction and use of our case, the customer will increase the usage of this model in the follow-up plan, laying a solid foundation for the follow-up long-term cooperation. "This double-hook hoist is relatively simple to use, and the synchronization of lifting is better." "The application of double-hook hoist on our assembly line is getting better and better. We have the opportunity to increase the participation of this double-hook hoist, so that other The production line is also used.” Recognition by customers has given us great motivation, and we hope that more and more double hook electric hoists will be used in automobile assembly lines in subsequent engineering projects.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a electric chain hoist, you can leave a message on the website or email, tell us the following information, and our sales manager will contact you:
