The application ratio of electric chain hoists in the field of light and small lifting is constantly increasing, and customers' usage habits are also tending to use electric chain hoists more. It has a very good practical effect in the single lifting area, the two-point lifting area and the multi-point lifting area. Today, we share the use of a chain electric hoist in a non-woven production factory. This case is the same as rising and falling, which provides a practical application case for the lifting, packing, and shifting of large rolls of non-woven fabrics.
User requirements: It is necessary to install lifting equipment for the production workshop. The weight is about 3t and the length is 2.4m. Because of the long length, direct lifting was used before, and hidden dangers such as offset or back and forth often occurred during the process. With the reduction, now I want to find a reliable and stable solution to reduce the worries of workshop operators and lift them with confidence.
Solution: According to the relevant working conditions reported by users and combined with our actual on-site measurement, we recommend the double hook synchronous lifting solution, that is, two hoists are used to lift synchronously, one hook lifts one end of the whole roll of non-woven fabric, and the other one is hoisting. The other end is equivalent to lifting the roll of non-woven fabric synchronously, and because the lifting speed of the 2t electric chain hoist is slow, it appears more stable

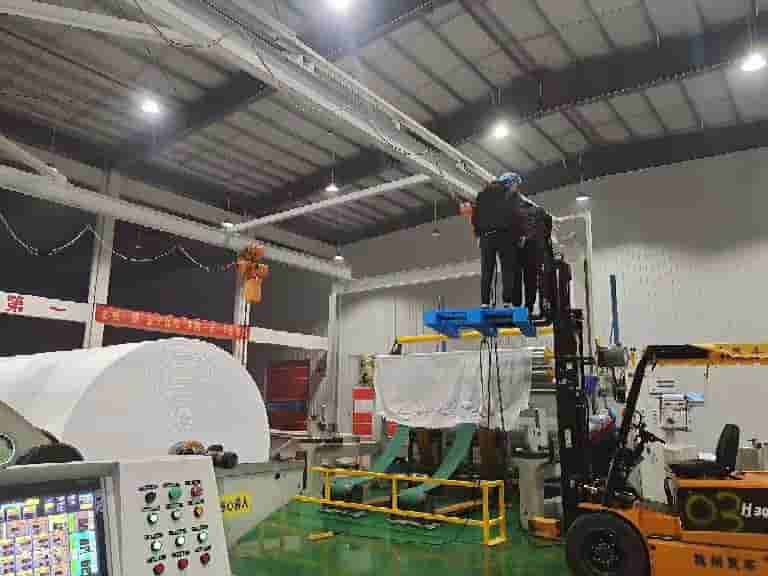

The length of the lifting area in the workshop is 33m, the width of the non-woven roll is 2.4m, and the weight is about 3t. We use an I-beam structure to build the running track. The span between the two I-beams is 2.4m, which is the same as the width of the lifting weight. quite. And install two 2t electric chain hoists on the I-beam rails on both sides to synchronously lift. In this way, the lifting of scattered heavy objects in the workshop can be solved. A single hoist can be used, which is also our common monorail crane. It also solves the lifting of the whole roll of non-woven fabric. The two hoists run up and down synchronously (we will directly recommend the small distance. Double hook electric hoist), left and right can also run synchronously, at the same time to move the position of the non-woven roll, and complete the machine loading and unloading.
After installation and use by the user, the problem of unbalanced hoisting is effectively solved, and through the modification of the electrical part, on the basis of the same lifting and lowering, the independent lifting and lowering function of the electric hoist is retained. In the case of demand, it can be operated independently One of the hoists has a certain space for the overall lifting. "This electric hoist is much easier to use than the previous one. We can lift the whole roll with just one click, which is very convenient." "Our workshop operators like to work next to this machine now, because only this machine is installed first. This kind of hoist crane", "this kind of double hook electric hoist that lifts and drops at the same time is very useful, we will install 3 sets in the future, and refit other production lines." We are also very happy to hear such feedback from users. We hope that on this basis, we can provide users with more system solutions and solve the pain points of logistics transportation in production enterprises. We will continue to work hard.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a electric chain hoist, you can leave a message on the website or email, tell us the following information, and our sales manager will contact you:
