Application of running electric chain hoist in unpacking machine

Electric chain hoist, running with an electric trolley, can complete the loading and unloading problem in the ton bag unpacking machine, and because the loading time of the ton bag being lifted is long, the use of electric chain hoist can solve the problem of lowering and inclined hoisting. It is widely used in the ton bag unpacking machine industry. In this scheme, with I-beam and remote control, remote control can be realized. The use of electric hoist to lift materials can improve production efficiency, reduce labor intensity, smooth unpacking and unloading, and can lift 1t or 2t at a time, and the volume is large. The explosion-proof electric chain hoist can also be used in dust and gas spaces.

Key words: 1 ton electric chain hoist, ton bag unpacking machine, powder unpacking machine, running electric hoist

Why use an electric chain hoist

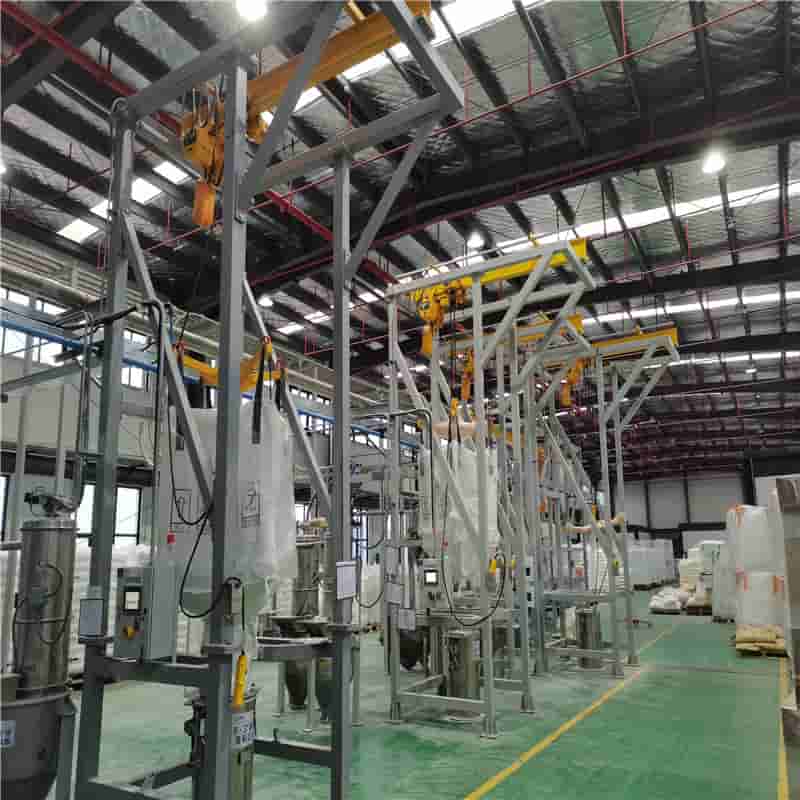

The unpacking machine is equipped with a chain electric hoist, which can hoist the material to the top of the unpacking machine, and then slowly slide down. There are workers cutting or cutting the knife holder below, so that the material in the ton bag can slowly fall to the storage below by gravity. In the bucket, the loading and unloading work is completed. In this case, a 1t running hoist is used, and with the 22-gauge I-beam hanger, it can meet the actual use of the customer.

Introduction of electric chain hoist accessories

1.  Shell: aluminum alloy shell, solid and light. There are special heat sinks, which can dissipate heat quickly, can be used continuously, and the efficiency can reach 40%. It can be used in chemical plants, electroplating plants and other places;
2.  Side magnetic brake: The designed magnetic force generator has the characteristics of producing magnetic force. It can brake at the same time when the power is cut off to ensure timely braking when lifting weight;
3.  Limit switch: There are limit switch devices for both hanging up and down, which can automatically stop and prevent the chain from exceeding;
4.  Chain: imported FEC G80 heat-treated alloy steel chain. Can be used in rain, sea water, chemicals and other harsh conditions;
5.  Hook: hot forged, high strength, not easy to break. The lower hook can be rotated 360 degrees, and the hook tongue is attached to ensure smooth operation;
6.  Support frame: The lifting support frame is composed of two steel plates, which is very strong;
7.  Transformer: 24v/36v/48v and other transformer devices. During operation, in case of leakage, accidents can be prevented, and normal operation can be realized when it rains;
8.  Electromagnetic contactor: can be used at high frequency, no problem;
9.  Reverse protector: special electrical device, when the power connection is wrong, the control circuit cannot operate;
10.  Button switch: Use waterproof button switch, which is light and durable.

Design and installation of electric chain hoist

According to the needs of users, we recommend the 1t electric hoist. This electric hoist has the advantages of lightness and portability, compact structure and simple operation, and is increasingly favored in the field of material hoisting. It has a wide range of applications in papermaking, steel, ports, automobiles, general manufacturing, mining and other fields.

Electric chain hoist is a kind of lifting equipment with small size and light weight. Its structure is simple, and it has advantages in lifting height, running distance, precision, life, etc. It is easy to install and operate, has high reliability, and has a wide range of applications.

Combined with the actual situation of the user, we have matched a 5m long I-beam structure, and made a set of corresponding four-corner hangers below, which can lift the ton bag and keep it as stable as possible.

Because it is a supporting project, our products are directly delivered to the big bag hoist manufacturers, who will carry out preliminary installation and commissioning, and deliver them to the user. From the perspective of customer usage and routine maintenance, the use effect meets customer expectations

How to customize electric chain hoist

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a electric chain hoist, you can leave a message on the website or email, tell us the following information, and our sales manager will contact you:

• The Lifting capacity, lifting height;
• The voltage or power supply (single phase or 3-phase hoist);
• The suspension (hook, geared trolley, motorized trolley);
• The control types;
• The duty cycle, hoist speed, trolley speed, and beam size;
• The application, what materials to be lifted.
