10 Ton Double Girder Rail Mounted Gantry Crane Price Double Girder Hook Gantry Crane

1 Posts
1 Users
0 Likes
1,130 Views
(@auden-barnett)
Trusted Member
Joined: 2 years ago
Posts: 21
Topic starter

The double girder gantry crane has broad application prospects in Singapore, and the selling price of this 10 ton double girder gantry crane is approximately $18000. If you plan to purchase this 10 ton gantry crane, it can be used in work scenarios such as Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works, Energy&Mining, Food&Beverage Shops, Other, etc.

Gantry crane (also known as gantry crane) is a bridge crane supported on the ground track by two side legs. In structure, it is composed of portal frame, cart running mechanism, lifting trolley and electric part. Some gantry cranes only have outriggers on one side, while the other side supports on the workshop or trestle, which is called semi-gantry crane. The upper part of the gantry frame of a gantry crane (including the main girder and end girder), the supporting legs, the lower cross beam, etc., is composed of the upper part of the gantry frame of the gantry crane. In order to expand the scope of crane operation, the main girder can extend beyond the outriggers to one or both sides to form a cantilever. Lifting trolley with boom can also be used to expand the scope of crane operation by pitching and rotating the boom.

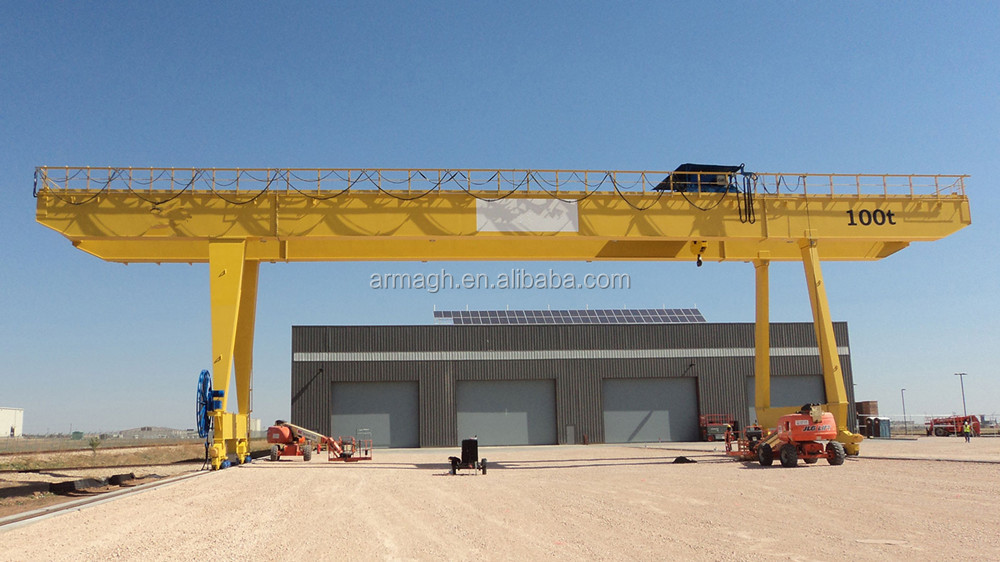

Detailed Images

Hook gantry crane is composed of double main girders, supporting legs, upper end girders and lower end girders. The portal frame is divided into box, truss, box and truss mixing and other forms, which are welded by steel plate and section steel respectively. In order to facilitate storage and transportation, the main beam, supporting leg and lower cross beam are connected by bolts. Lifting mechanism: The car assembled by motor, reducer and drum as lifting mechanism can run along the main girder, as shown in the random general drawing. Car operating mechanism: It consists of motor, reducer and big wheel, or cycloid pinwheel reducer and big wheel.

Size Information

Loading capacity

5 ~ 100t

Lifting height

6 ~ 30 m or customized

Lifting speed

Vary with lifting capacity, or customized.

Span

10.5~31.5 m

Lifting mechanism

Wire rope hoist or electric chain hoist

Working class

A5-A8

Working temperature

-20 ~ 40°

Power supply

AC-3Phase-220//230380/400/415/440V-50/60Hz

Control voltage

DC -36 / 48V

Motor protection class

IP54, IP55, IP65

Control way

Cabin, wireless remote, pendant push button

Safety device

Buffer,current overload protection,overload device,power failure protection

Application area

Factory,workshop,warehouse,power station,logstic,etc.
