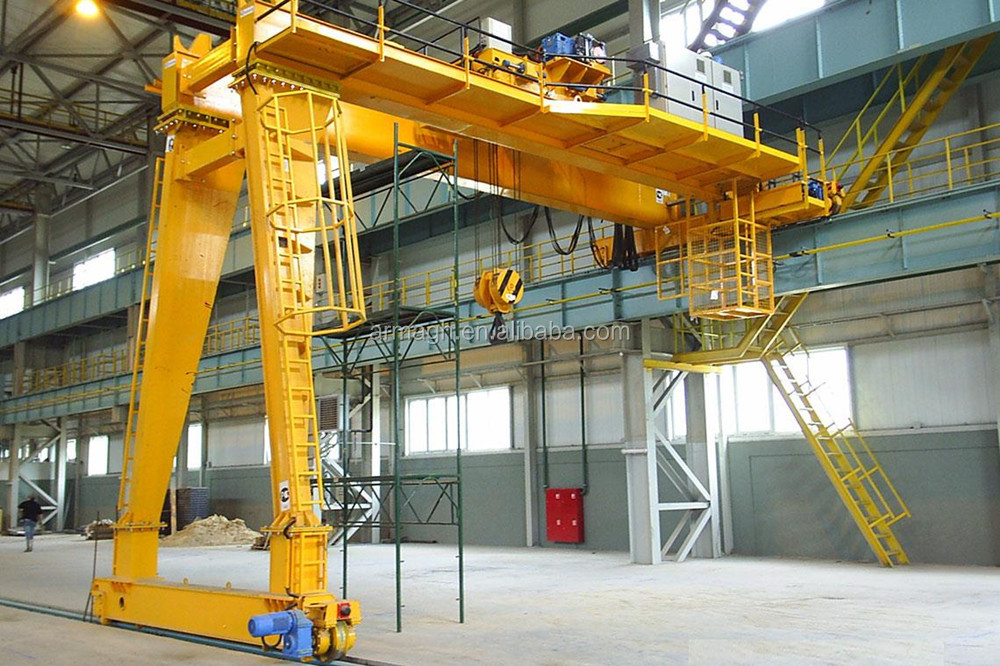

This 30 ton gantry crane has recently been sold to Sri Lanka at a selling price of around $15000. It is a heavy-duty gantry crane used in construction works, Energy&Mining, steel mill workshop outdoor work, and other workplaces. Through design, the maximum lifting capacity can reach 200 tons. If you plan to purchase a 30 ton gantry crane, please let me know in your treatment message and leave your contact information.
5t to 200t gantry crane
Gantry crane (also known as gantry crane) is a gantry crane which is supported on the ground track by two legs of the bridge.In the structure by the door frame, cart operation mechanism, lifting trolley and electrical components.Some gantry cranes only have a leg on one side, the other side of the plant or trestle support in the operation, known as a semi-gantry crane.Gantry crane door frame part of the bridge (including the main beam and end beam), legs, beams and other parts of the lower beam.In order to expand the scope of crane operation, the main beam can extend beyond the supporting legs to one side or both sides to form cantilever.Also can use the lifting trolley with boom, through the boom pitch and rotation to expand the scope of crane operation.
Loading capacity
|
5 ~ 200t
|
Lifting height
|
3 ~ 30 m or customized
|
Lifting speed
|
Vary with lifting capacity, or customized.
|
Span
|
10.5~31.5 m/min
|
Lifting mechanism
|
Wire rope hoist or electric chain hoist
|
Working class
|
A5-A8
|
Working temperature
|
-20 ~ 40
|
Power supply
|
AC-3Phase-220//230380/400/415/440V-50/60Hz
|
Control voltage
|
DC -36 / 48V
|
Motor protection class
|
IP54 IP55 IP65
|
Control way
|
Cabin, wireless remote, pendant push button
|
Safety device
|
Buffer,current overload protection,overload device,power failure protection
|
Application area
|
Factory,workshop,warehouse,power station,logstic,etc.
|
Factory supply 5t to 200t gantry crane
Since 1995,more than 20 years crane, hoist and winch produce Experience;
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control.
