5 ton rail mounted gantry crane price $3588 for sale in Thailand

1 Posts
1 Users
0 Likes
689 Views
(@emily-johansson)
Estimable Member
Joined: 2 years ago
Posts: 53
Topic starter

Before I introduce the real case of the 5 ton gantry crane, I want to explain the price. The price of the 5-ton gantry crane we sell needs to be priced according to the lifting height, span and other factors. $3588 is the sales price of a case, which can provide you with a reference value. But if you want to know the latest 5-ton gantry crane price, you need to leave your contact information and gantry crane parameters in the next message.

We received the inquiry from this client on April 6, 2019. But at that time, they told us they were looking for overhead crane.

After checking the design drawing of their workshop, we found that it cost too much to add steel structures to support overhead crane. And on the other hand, it was not easy to meet customer’s requirement on lifting height by overhead crane. Finally we recommended gantry crane design with European type electric hoist.

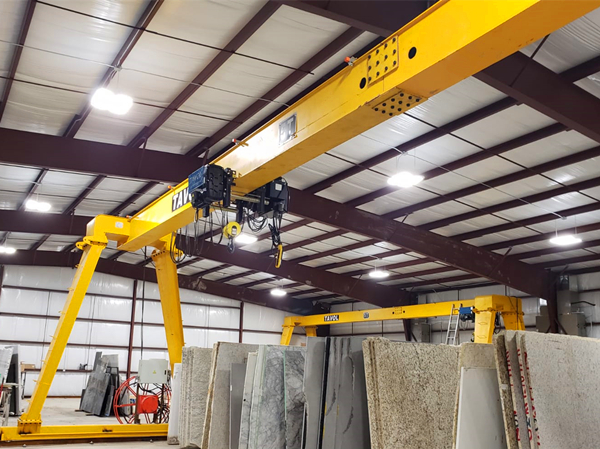

Our client was moved by our design since we were considering saving cost from the perspective of customers but not focused on profit. They did not ask any discount for Proforma Invoice and paid the deposit on April 21, 2019. When the 5 ton single girder gantry crane arrived at client’s factory, they are very satisfied because we treated each package well.

They spoke highly of our professional service online though time between China and USA is quite different. On December 26, 2019,

we got an email from our USA client. They wrote our gantry crane are working perfectly and they are in the planning stages of their next building. Here we shared the shot screen of the email.

PRODUCT SPECIFICATIONS
No
Item
Data
1
Lift capacity
5T
2
Span
13.9M
3
Lift height
3M
4
Total height
4.5M
5
Work duty
A5
6
Control method
Wireless remote
7
Electrical parts
Schneider
8
Lift motor
6.1/1KW, lift speed 5/0.8M/Min
9
Cross travel motor
0.5KW, travel speed 5/20M/Min
10
Long travel motor
1.5KW X 2, travel speed 2/20M/Min
11
Main power cable
3 X 10MM2
12
Cable spring
JTT50-50-4
13
Runway with accessories
P24
14
Control voltage
AC 36V
15
Power supply
480V/50Hz/3P
16
Key Word
Gantry Crane
