This 5 ton portable gantry crane is currently on sale in Singapore for $1200. If you are planning to purchase one 5 ton gantry crane, you can take a look at our product. Below are the detailed parameters of this gantry crane. Among various gantry crane products, our 5 ton gantry crane has the lowest price and the highest cost-effectiveness. If you find it suitable, you can leave your contact information and your requirements for the parameters of the gantry crane in the message below.
Portable gantry crane mostly use in small factories daily production which needs handling equipment, warehouse on the ship, lifting and maintenance for the transport of heavy equipment and materials. It is good design and development of small lifting equipment.
For the manufacture of the mold, automotive factroy, mine, construction site and other lifting occassion. The biggest advantage of portable gantry omni-directional mobile, small footprint, the rational design of steel structure, able to withstand the weight from 500kg to 5000kg. Especially suitable for the installation workshop equipment, handling, and debugging. Portable gantry crane reduce manpower, reduce production and operating cost, and improve work efficiency.
| Capacity | T | 1 | 2 | 3 | 5 | 10 |
| Span Length | S(m) | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
| Lifting Height | m | 2.5~30 | 2.5~30 | 2.5~30 | 2.5~30 | 2.5~30 |
| Lifting Speed | m/min | 0.8/8 | 0.8/8 | 0.8/8 | 0.8/8 | 0.7/7 |
| Trolley Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Work Duty | A2~A3 | A2~A3 | A2~A3 | A2~A3 | A2~A3 | |
| Wheel Diameter | mm | ∅150 | ∅150 | ∅150 | ∅150 | ∅200 |
| We can design and manufacture all kinds of non-standard Gantry Crane according to your requirement | ||||||

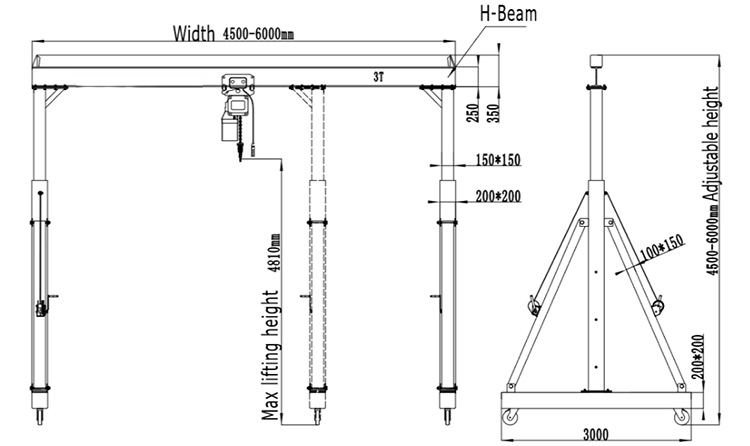

Drawing
1. Load up to 30 ton, span up to 40m, height accept customize
2. Wear-resistant polyurethane wheels. Small rolling resistance, easy to move, safe and reliable.
3. Modularized design,beam and column bolted connection, easy installation.
4. Portal frame can be equipped with manual or electrical hoist.
