Marine gantry cranes can play an important role in coastal countries such as Singapore, the Philippines, Malaysia, etc. For detailed information, please refer to the picture below and the parameters of the gantry crane. Our ship uses a gantry crane with a lifting capacity between 50 tons and 300 tons. If there are special requirements, we accept customization. The selling price starts at $29800. If you need to purchase a marine gantry crane, you can leave me a message.
Boat Lifting Gantry Crane includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the "U"type , it can transfer the boat or yatch. According to different requirements of our customers, the boat hoist crane can handling different tons boat or yacht from the shore side, capacity can raech 500 ton.

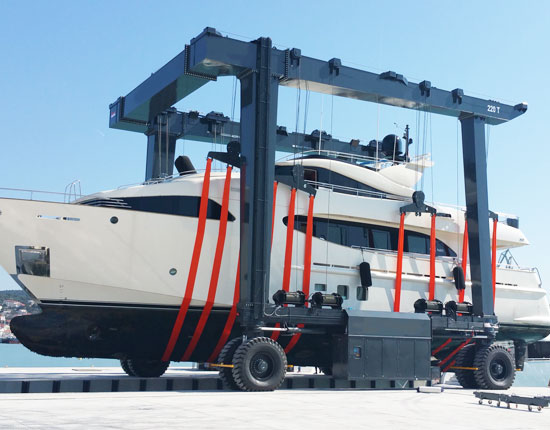

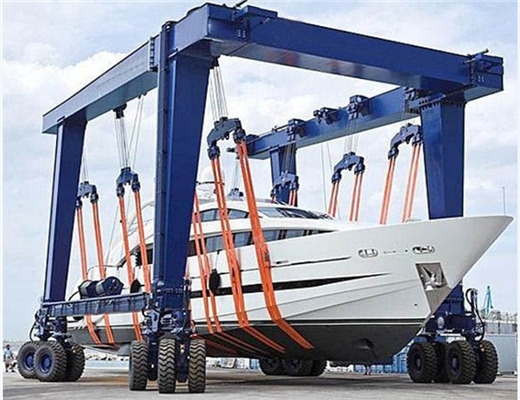

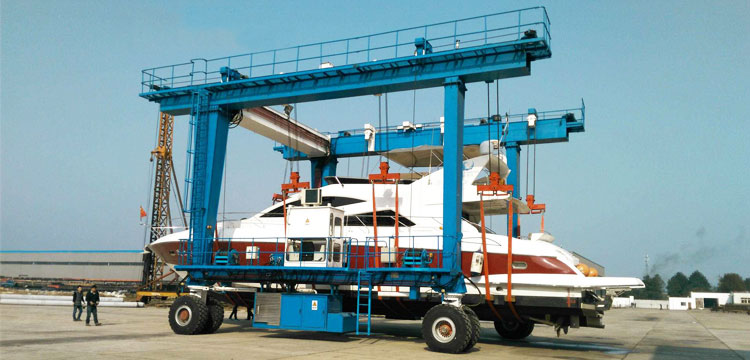

Product View
MBH Boat Crane Features
1.Our boat crane lift adopts full hydraulic drive system. 2.The flexible slings are used to protect the hull. 3.Operation and steering modes very widely. Generally, there are straight travelling, oblique travelling, fixing axle steering, 4.90 degree steering and Ackermann steering. 5.Flexible configurations are available, such as variable span design, movable lifting points and variable lifting stroke. 6.Our mobile boat crane uses superior paint to resist corrosion in harsh marine environments.
Specification
|
Tonnage
|
Lifting speed m/min
|
Travelling speed m/min
|
Climbing ability
|
Lifting point No.
|
Diesel engine power
|
Gross weight of equipment
|
|
50
|
0~2.5
|
0-30
|
4%
|
4/8
|
85
|
36
|
|
100
|
0-1
|
0-30
|
4%
|
4/16
|
112
|
62
|
|
150
|
0-1
|
0-30
|
4%
|
4/16
|
132
|
78
|
|
200
|
0-1
|
0-25
|
4%
|
4/16
|
200
|
108
|
|
300
|
0-1
|
0-25
|
4%
|
4/32
|
250
|
182
|
|
600
|
0-1
|
0-25
|
4%
|
8/32
|
2×200
|
280
|
|
800
|
0-0.6
|
0-15
|
2%
|
8/32
|
2×230
|
400
|
|
1200
|
0-0.6
|
0-10
|
2%
|
8/64
|
2×380
|
556
|
The mobile boat crane is capable of lifting 10 tons to over 1200 tons boats, and according to the weight of boat it handles, the boat hoist crane can be divided into small boat lift, medium boat hoist and large boat lift. The small boat hoist is typically used to lift 10 tons to 100 tons weight. It is an ideal option for small marinas, shipyards and docks. The medium boat crane can handle vessels ranging from 150 tons to 500 tons. It is ideal for lifting fishing boats, large yachts and other commercial vessels. The large boat lift crane has the capability to handle 600 to 1200-ton vessels. It is more often found in large marinas, shipyards and commercial yards to lift and transport large ships, such as super yachts and tugs.
