The price of a 20 ton double girder gantry crane in Pakistan is approximately $25000. If the purchase volume is large, the sales price of a single gantry crane can be reduced to 20000 dollars. The price of a gantry crane is influenced by various factors, and this price is only a basic price that can provide you with reference. If you want to purchase a 20 ton double beam gantry crane, you can leave a message below, leaving your contact information and parameters, and I will contact you.

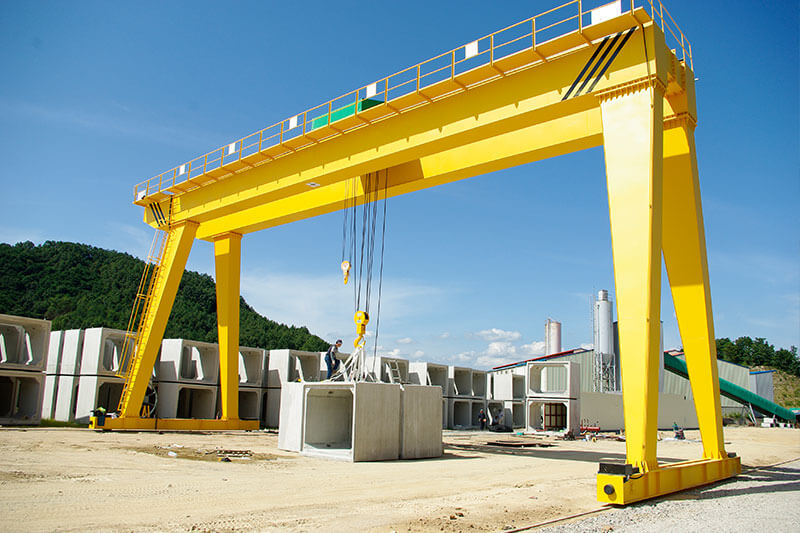

Double girder gantry crane with hooks is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.
Contact us for more information
|
type |
MG |
|||||||||
|
Capacity(t) |
Main |
10 |
16 |
20 |
32 |
50 |
75 |
100 |
||
|
Aux |
|
3.2 |
5 |
5 |
10 |
20 |
20 |
|||
|
Span |
18; 22; 26; 30; 35 |
30,35 |
40 |
16 |
||||||
|
Hoisting height(m) |
Main |
11 |
12 |
12 |
12 |
22 |
22 |
17.5 |
||
|
Aux |
|
16 |
14 |
14 |
24 |
|||||
|
Hoisting speed |
Main |
7.4 |
9.4 |
5.8 |
7.7 |
7.68 |
6.25 |
4.62 |
||
|
(m/min) |
Aux |
|
11.2 |
12.6 |
15 |
19.8 |
9.28 |
9.28 |
||
|
Hoisting motor |
Main |
YZR200L-8/15 |
YAR225M-8/22 |
YAR250M1-8/30 |
YAR280M-8/55 |
YZR315S-10/63 |
YAR315M-10/85 |
YZR315M-10/85 |
||
|
Aux |
|
YZR160L-6/11 |
YZR160L-6/15 |
YZR180L-6/15 |
YZR250M-8/35 |
YZR250M1-8/35 |
YZR250M1-8/35 |
|||
|
Crane Rail Recommended |
43kg/m 43kg/m 50kg/m Qu80 |
Qu80 |
||||||||
|
Power source |
Three phase AC 380V 50Hz |
|||||||||
