The recent price for this 3 ton gantry crane sold to Singapore is $2560. As a portable gantry crane, this -ton gantry crane has a lightweight design and flexible working methods, making it very popular in Southeast Asian countries. If you are planning to purchase a 3 ton gantry crane, you can take a look at our product. Below is a detailed introduction to your product. If you have any questions, please let me know in the message area.
3 ton gantry crane price lower than other factories but equip with high-quality components is a trail running light or medium duty single girder gantry crane. Because of its easy operation and economical design, it is widely works in open warehouses, material stocks area, cement plant, granite industry, construction industry, engineering industry, railway station to lifting and moving goods.
According to the difference of the beam structure, there are box type and truss type for choosing. Box type is a stronger and compact design, while the truss type has more powerful wind resistance, please make your right choice as to the working conditions.
Also, if there are other special requirements of your usage or working environment, please no hesitate let us know, our engineering team will make the most sitable solution for you.

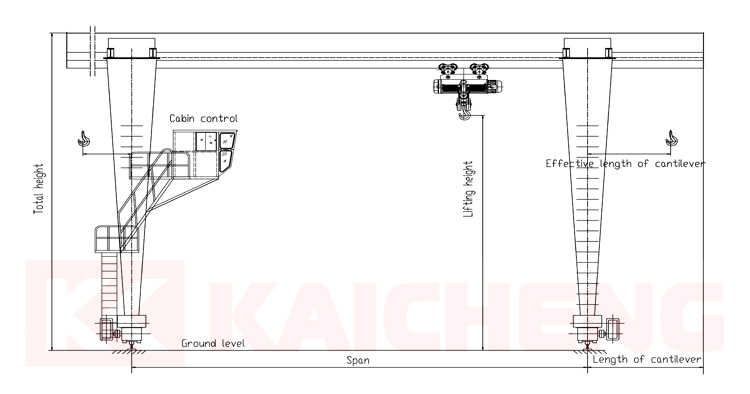

Technical data
| Capacity | ton | 0.5~32 | |
| Span | m | 7.5~31 or custom made | |
| Cantilever | m | Double/single/none (length customizable) | |
| Lifting height | m | 3~12 or custom made | |
| Lifting speed | m/min | 7/0.7, 8/0.8 | |
| Speed | Hoist traversing | m/min | 20/30 or custom made |
| Crane travelling | m/min | 20/30 or custom made | |
| Working duty | ISO | A3~A8 | |
| FEM | 1AM, 2M, 3M, 4M | ||
| Working environment temperature | ℃ | -25~40 or custom made | |
| Motor protection grade | IP54/IP55 | ||
| Crane track rail | 38kg/m,43kg/m | ||
| Control method | Pendant/ Remote/ Cabin | ||
| Power supply | 3-phase, AC 220V~480V | ||
