This 3 ton gantry crane is a portable gantry crane that currently sells for approximately $2900 in Singapore. If you are planning to purchase this gantry crane, you can leave your contact information and crane parameters in the message area. You will receive the latest quotation for a 3 ton gantry crane. Singapore imports a large number of gantry cranes every year, and we have many years of experience in crane sales and service there.
Portal gantry crane gantry crane wheels manual small gantry crane

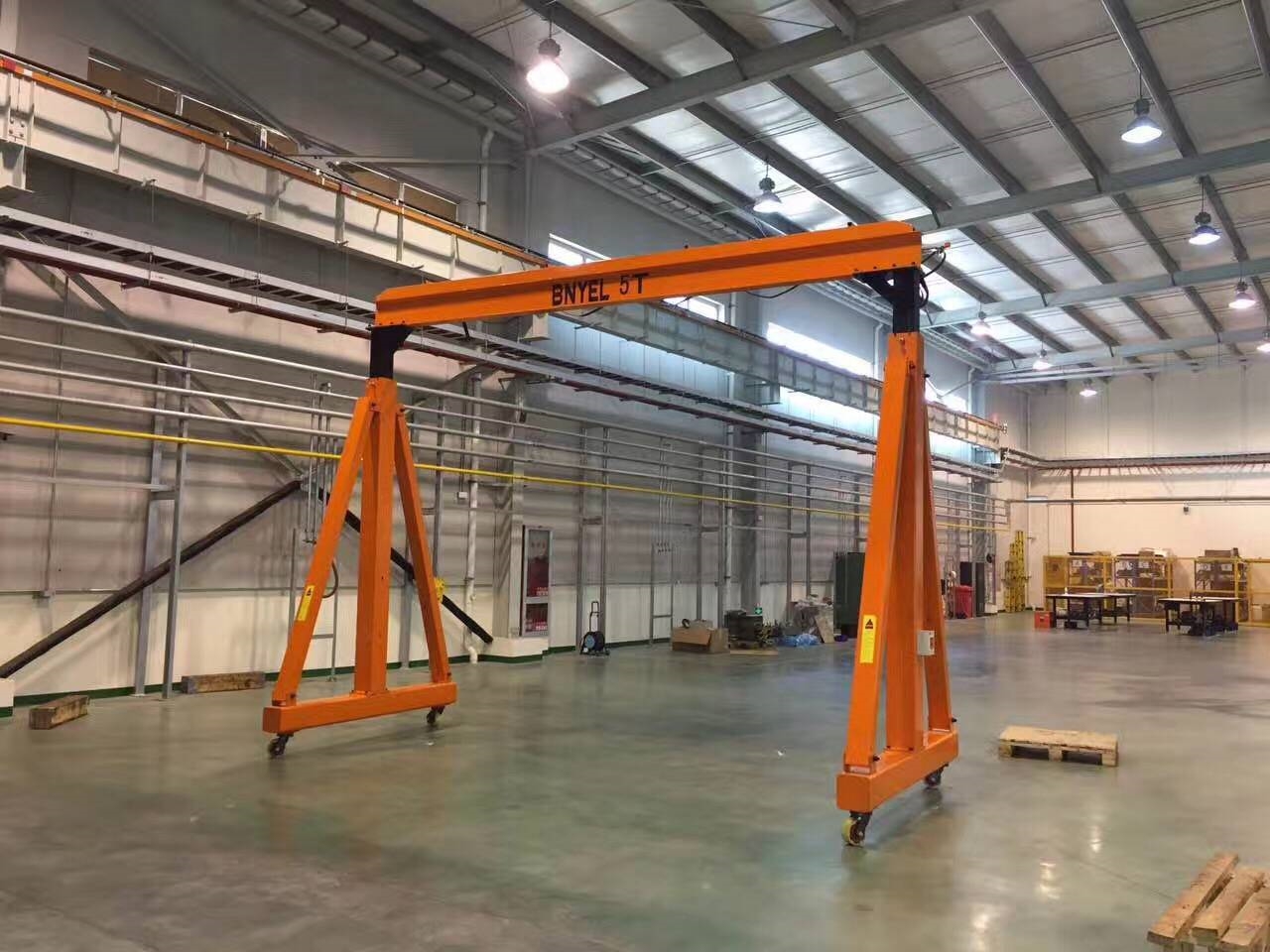

Portable gantry crane mostly use in small factories daily production which needs handling equipment, warehouse on the ship, lifting and maintenance for the transport of heavy equipment and materials. It is good design and development of small lifting equipment.
For the manufacture of the mold, automotive factroy, mine, construction site and other lifting occassion. The biggest advantage of portable gantry omni-directional mobile, small footprint, the rational design of steel structure, able to withstand the weight from 500kg to 5000kg. Especially suitable for the installation workshop equipment, handling, and debugging. Portable gantry crane reduce manpower, reduce production and operating cost, and improve work efficiency.
. GET QUOTATION NOW
1. Load up to 5 ton, span up to 6m, height up to 6m
2. Wear-resistant polyurethane wheels. Small rolling resistance, easy to move, safe and reliable.
3. Modularized design,beam and column bolted connection, easy installation.
4. Portal frame can be equipped with manual or electrical hoist.

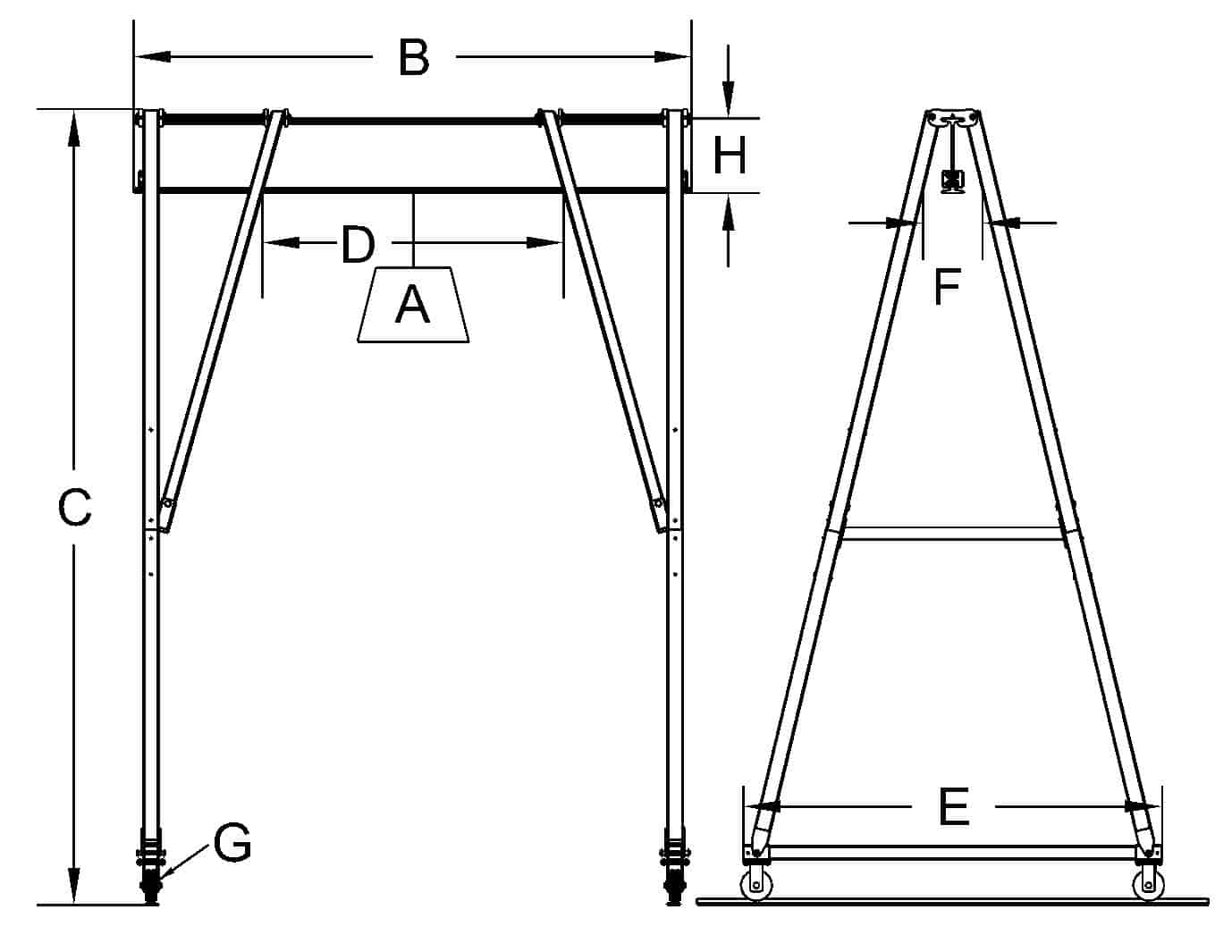

| Capacity | T | 1 | 2 | 3 | 5 | 10 |
| Span Length | S(m) | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
| Lifting Height | m | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 |
| Lifting Speed | m/min | 0.8/8 | 0.8/8 | 0.8/8 | 0.8/8 | 0.7/7 |
| Trolley Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Work Duty | A2~A3 | A2~A3 | A2~A3 | A2~A3 | A2~A3 | |
| Wheel Diameter | mm | ∅150 | ∅150 | ∅150 | ∅150 | ∅200 |
