The selling price of a 15 ton overhead crane in the Philippines is $9500. If you purchase a large quantity, the price can still be a bit cheaper. This is an ld type single beam overhead crane with a lifting capacity range of 1-32 tons. Usually, this crane is used in work scenarios such as Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food&Beverage Factory, Farmers, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy&Mining, Food&Beverage Shops, Advertising Company, etc. We can provide various international certification certificates such as CE GOST ISO SGS for this crane sold in the Philippines. If you plan to purchase one 15 ton overhead crane, you can consider our product.

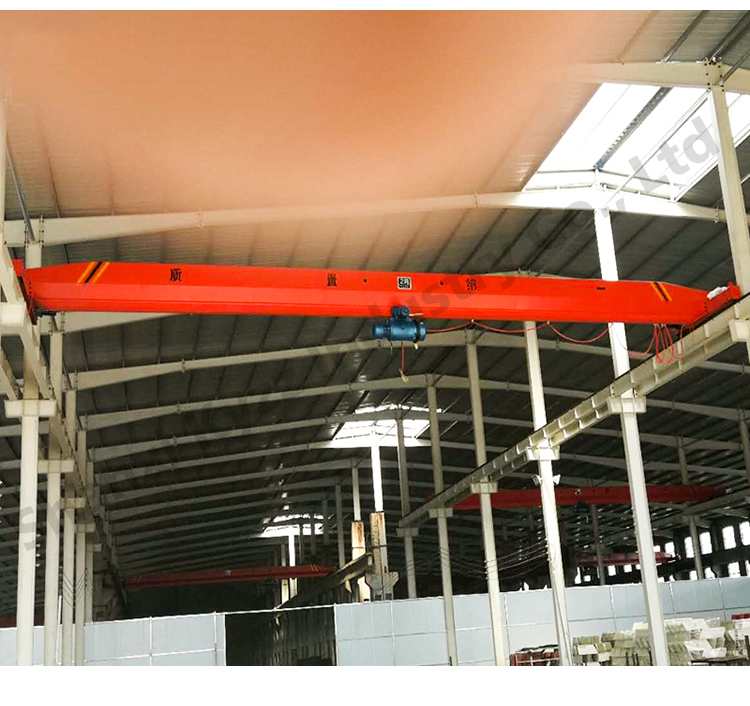

LD Single girder bridge crane is widely used in machinery manufacturing shop, petroleum, petrochemical, metallurgical workshop, ports, paper making, building materials, electronics and other industries workshops, warehouses, yard, etc. With compact dimension, low headroom, light weight, small wheel pressure, etc.
· Crane traveling limit switch.
· Weight overload protection device.
· Lifting height limit device.
· Voltage lower protection function.
· Phase sequence protection function.
· Emergency stop function.
· Rain cover for outside hoist, driving units, electric cubicle.
· Warning indicator: flashing lights and warning sounds.
· Wireless infra-detector for anti-collusion.
Capacity(t) |
1t---5t |
10t |
16t---25t |
32t---50t |
75t---100t |
Span(m) |
6.5m---35.5m |
||||
Lifting height(m) |
3m---30m |
||||
Control mode |
Pendant control,wireless remote control,cabin control |
||||
Lifting speed(m/min) |
2.8 ,8, 8/0.8 |
2.3 ,7 ,7/0.7 |
3.5 , 3.5/0.35 |
3 ,3/0.3 |
1.8 ,1.8/0.2 |
Travelling speed(m/min) |
20,30,45(Inverter) |
||||
Service class(work grade) |
a) M2,M3: used in places of mild service, such as workshop and warehouse. c) M5: used in heavy place and long time working factory |
||||
Supply power(three phase power) |
380V 50HZ 3Phase (according to user require) |
||||
Hoist type |
Wire rope or chain hoist ,single or double speed |
||||
Working ambient temperature |
-20 °C~ <55°C. |
||||
Note |
It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions. |
