This is one LD type 1 ton overhead crane, and the price of the latest one sold to the Philippines is around $2500. The range of this overhead crane is 1-10 tons, with a working strength of A3 and A4. It is usually used in workplaces such as Machinery Repair Shops, Manufacturing Plant, Construction Works, Energy&Mining, etc. According to the different parameters, the maximum selling price of this overhead crane can reach $15000. If you want to purchase one 1-ton overhead crane, you can leave me a message below or tell me your requirements for the working conditions and parameters of the overhead crane, and I will send you the latest quotation for the corresponding crane.

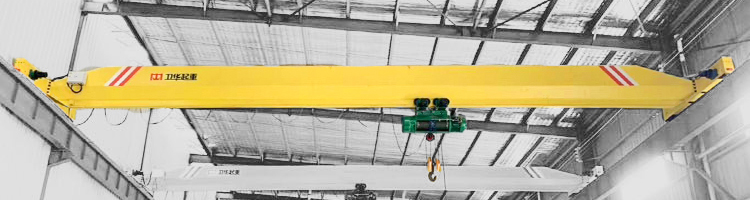

LD model single girder overhead crane has the characteristics of reasonable structure and strong rigidity of the whole machine. It’s equipped with CDMD model electric hoist. It is a light duty crane with a capacity reaches to 20 tons.
Its standard span is 7.5-31.5 meters, work duty is A3-A4, working environment temperature is minus 25 degrees to 40 degrees.
This product is widely used in plants, warehouses, material stocks to lift goods. There two control methods to choose: ground control or cabin control, to enrich customers' choices.
Parameters
| Lifting Capacity | t | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Span | m | 7.5-31.5 or Design | ||||||
| Lifting Height | m | 6, 9, 12 or Design | ||||||
| Lifting Speed | m/min | 8 (8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 7(7/0.7) | 3.5 (0.35/3.5) | 3.3 (0.33/3.3) |
| Trolley Taveling Speed | m/min | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Crane Traveling Speed | m/min | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 |
| Work Duty | A3, A4 | A3, A4 | A3, A4 | A3, A4 | A3, A4 | A3, A4 | A3, A4 | |
| Power | 3 Phase 380V, 50Hz or Design | |||||||
