The selling price of this European style 5 ton overhead crane in Malaysia is $19999. The actual purchase price will vary depending on the customer's needs and changes in crane parameters. If you want to purchase one European 5-ton overhead crane, please let me know your requirements and crane parameters in the message, and I will send you the latest quotation.

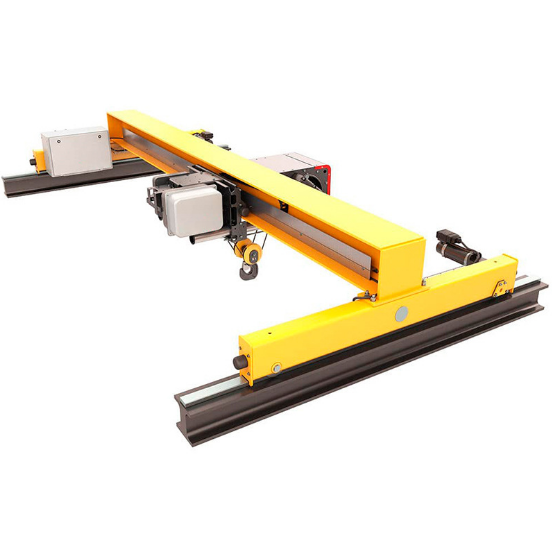

European Single Girder Overhead Crane is compact lifting machinery designed and manufacturing in strict accordance with FEM and DIN standard, which with advanced technology and beautiful design.supporting the use of European standard electric hoist, suitable for workshop and warehouse material handling, large parts precision assembly and other places.
Features Of European Single Overhead Crane
1.High reliability, safety, free maintenance rate
a) Work duty: FEM2M, M5
b) Protection class: IP55
c) Insulation class: F
d) Continuing rate: 60% ( for the high class motor)
e) Cooling rate: 30% than normal crane
f) Over temperature protection: 170ºC
2.Compact design
small size, low self weight, low headroom.Low Noise
3.Power-saved.The total motor power is much lower than normal design
|
Technical Parameter of AQ-HD European Type Single Girder Overhead Crane
|
||||||
|
Capacity(t)
|
Span(m)
|
Lifting height(m)
|
Lifting speed
(m/min)
|
Trolley speed
(m/min)
|
Crane speed
(m/min)
|
Work duty
|
|
1
|
7.5~28.5
|
6~18
|
0.8/5
|
2~20
|
3~30
|
A5
|
|
2
|
7.5~28.5
|
6~18
|
0.8/5
|
2~20
|
3~30
|
A5
|
|
3.2
|
7.5~28.5
|
6~18
|
0.8/5
|
2~20
|
3~30
|
A5
|
|
5
|
7.5~28.5
|
6~18
|
0.8/5
|
2~20
|
3~30
|
A5
|
|
10
|
7.5~28.5
|
6~18
|
0.8/5
|
2~20
|
3~30
|
A5
|
|
12.5
|
7.5~28.5
|
6~18
|
0.66/4
|
2~20
|
3~30
|
A5
|
|
16
|
7.5~28.5
|
6~18
|
0.66/4
|
2~20
|
3~30
|
A5
|
|
20
|
7.5~28.5
|
6~18
|
0.66/4
|
2~20
|
3~30
|
A5
|
|
The specific parameters should be consulted with the manufacturer
|
||||||
