Heavy Duty Warehouse Double Girder Overhead Crane 20 Ton With Cabin Control for sale in Thailand

We sell a 20 ton double girder overhead crane with a cab in Thailand for approximately $8900. If you want to know about this 20 ton overhead crane, I will provide a detailed introduction below. If you want to purchase this 20 ton overhead crane, you can leave your contact information, span, and lifting height in the message below. The price of overhead cranes can vary depending on the parameters. If you don't often come into contact with overhead cranes, you can tell me your questions and I will answer them one by one.

Product Name: 20 Ton Heavy Duty Warehouse Double Girder Overhead Crane

Overhead crane capacity: 5~320t

Overhead crane span : 10-40m

Overhead crane lifting height: 10-30m

Overhead crane work duty:A5-A6

Overhead crane working temperature: -25℃ to 40℃

Overhead crane control method :Cabin control/Remote control

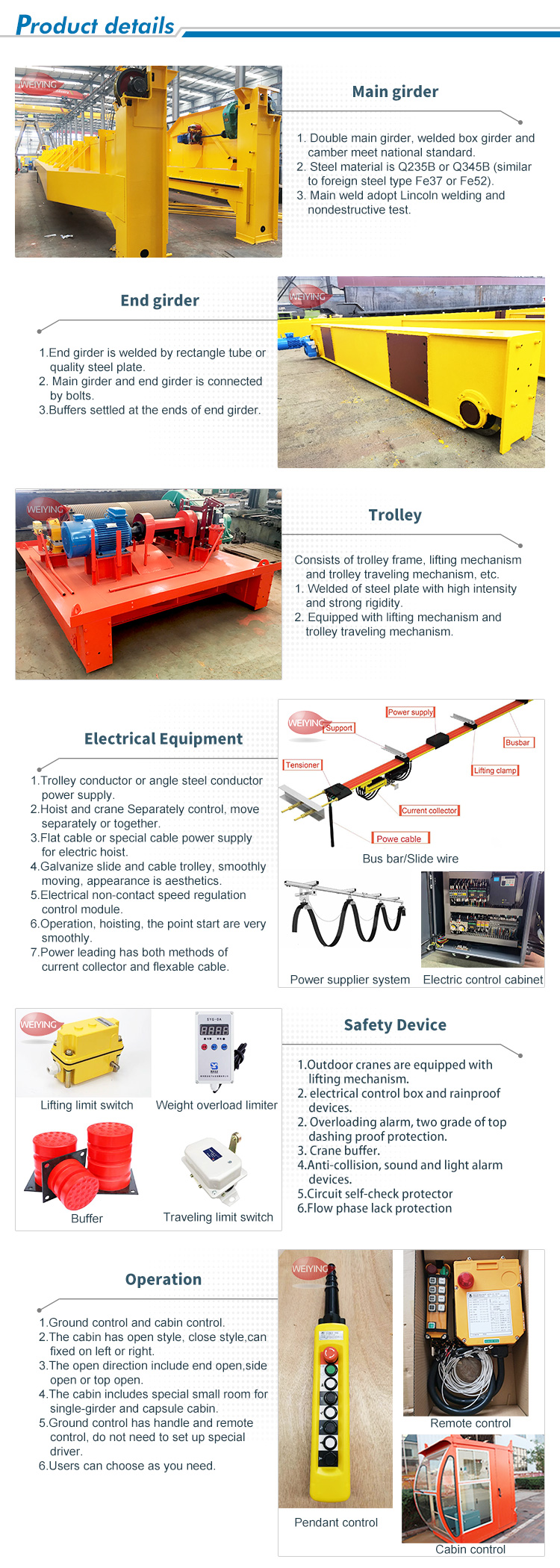

Warehouse Double Girder Overhead Crane 20 Ton is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required.It is capable of such works as transfer, assembly, check and repair as well as load and unload at mechanic procesing workshop, subsidiary workshop of metallurgical mills,warehouse, goods yard and power station.

It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.
