The selling price of this 10 ton single girder overhead crane is $5999. If you plan to purchase a 10 ton single beam overhead crane, you can leave us a message in the message area. This 10 ton overhead crane is commonly used in workplaces such as Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food Shop, Construction Works, Energy&Mining, and currently has good sales in countries such as Vietnam and the Philippines.

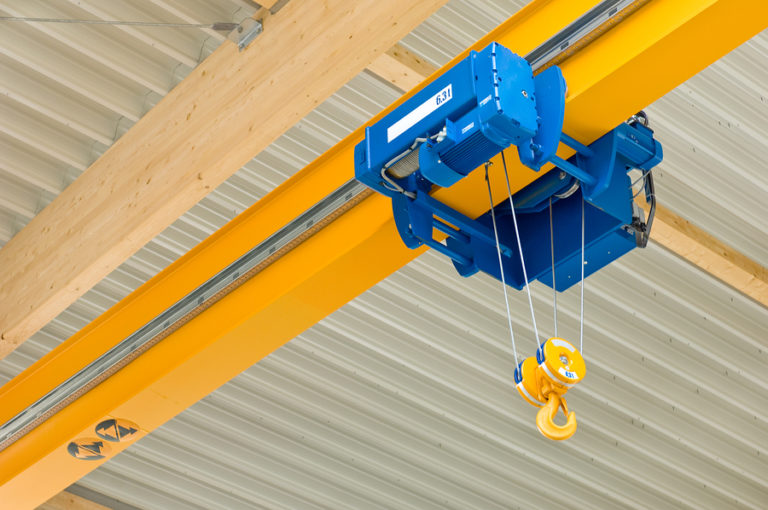

Single Girder Overhead Crane
Electric single girder overhead traveling cranes are applicable to transferring, assembly, check and repair as well as load and unload at mechanic processing workshop, subsidiary workshop of metallurgical mills, warehouses, goods yard and power station, etc.

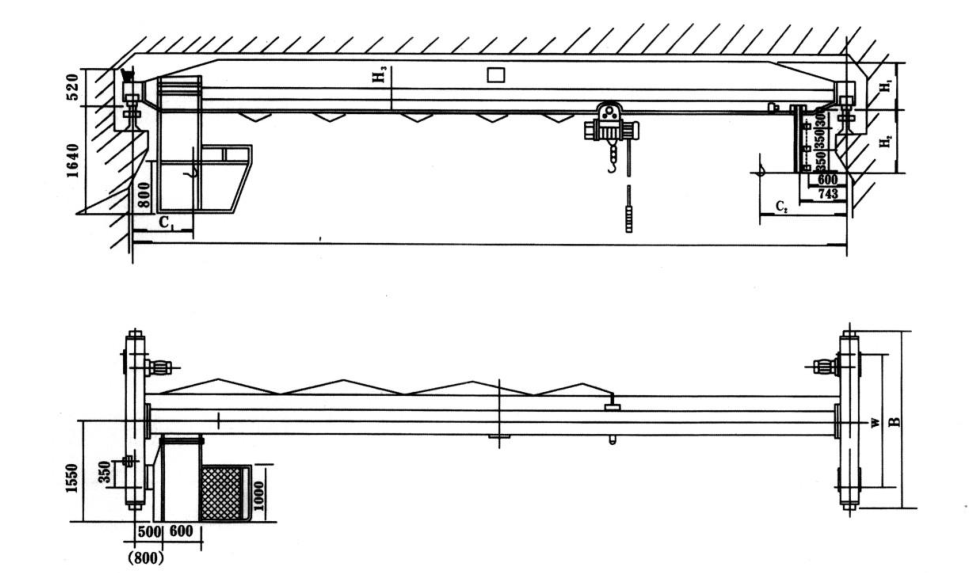

SPECIFICATIONS FOR Bridge Cranes
|
Span m |
Lifting height m |
Lifting speed m/min |
Total weight kg |
Max wheel load KN |
Work duty |
| 7.5 | 6; 9;12 | 0.8/5 | 2696 | 51.85 | A5 |
| 10.5 | 6; 9;12 | 0.8/5 | 3200 | 54.44 | A5 |
| 13.5 | 6; 9;12 | 0.8/5 | 4091 | 57.7 | A5 |
| 16.5 | 6; 9;12 | 0.8/5 | 5307 | 60.83 | A5 |
| 19.5 | 6; 9;12 | 0.8/5 | 6466 | 64 | A5 |
| 22.5 | 6; 9;12 | 0.8/5 | 7694 | 67.26 | A5 |
| 25.5 | 6; 9;12 | 0.8/5 | 9309 | 71.36 | A5 |
