RTG rubber-tyred container gantry crane is being sold in Singapore

If you need to buy a rubber-tyred container gantry crane in Singapore, you can contact us. Our company has rich experience in the supply of rubber-tyred container gantry cranes. Leave me a message below, leave contact information and parameter requirements for the gantry crane, and I will give you a latest quotation.

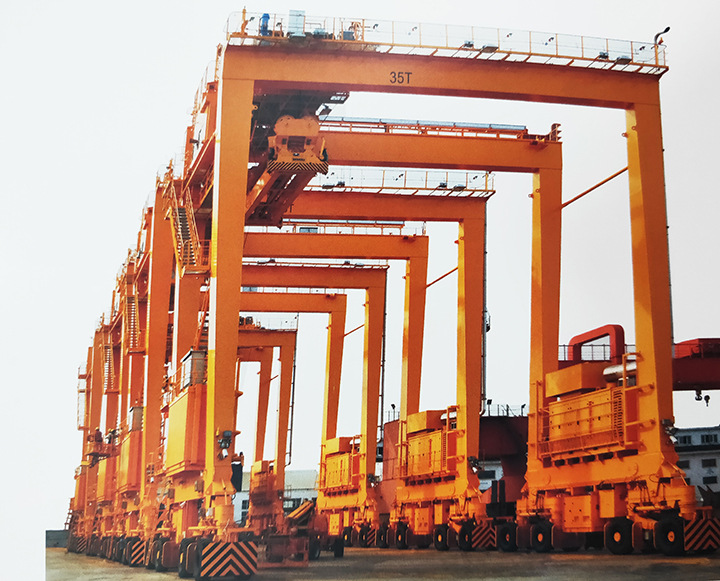

RTG is a lifting machine for large container yard, which is used for loading and unloading standard containers. It is not only applicable to the yard of container terminal, but also to the container yard.

Product introduction:

The rubber-tyred container gantry crane adopts digital frequency conversion speed regulation, which can move in two directions in the container yard. Equipped with telescopic slings capable of lifting 20-foot and 40-foot containers. The lifting appliances of the field bridge are mostly fixed guide plates. In order to reduce the swing of the sling, a mechanical anti-roll device is installed. In order to facilitate the box alignment, a small angle slewing device of the sling is installed. In order to be able to change the site operation, a 00~900 right-angle steering mechanism is installed. Generally, the span of the aircraft has been standardized to 23.47 meters (six lanes plus walkways). The lifting height can lift a container with a length of 40 feet and a height of 9'6 "over four layers (or five to six layers).

The machine is supported on large tubeless tires with 4, 8 or 16 wheels. The number of wheels is designed according to the requirements of site wheel pressure. The crane traveling mechanism can be four-wheel or two-wheel drive. In order to prevent collision between field bridges and between field bridges and containers, manual deviation correction system and anti-collision device at four corners of the crane are provided.

The trolley running mechanism can be rack-type or double-axis or single-axis drive, and the operation is stable. There is a cab under the trolley frame in which the driver operates the whole crane.

The field bridge adopts AC or DC speed regulation system, with speed regulation and constant power control, which can automatically adjust the lifting speed according to the weight of the box.
