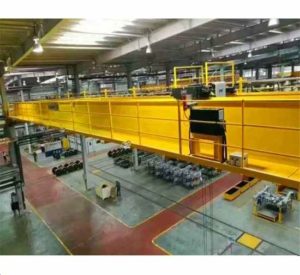

Dongqi Fem Standard European Type Double Girder Overhead Crane

Dongqi Fem Standard European Type Double Girder Overhead Crane Introduction

Dongqi Fem Standard European Type Double Girder Overhead Crane parameter

Dongqi Fem Standard European Type Double Girder Overhead Crane After sale

Main Features:
1.high reliability, safety, free maintenance rate;
a) Work duty: FEM2M, M5
b) Protection class: IP55
c) Insulation class: F
d) Continuing rate: 60% ( for the high class motor)
e) Cooling rate: 30% than normal crane
f) Over temperature protection: 170ºC
2.Compact design, small size, low self weight, low headroom
3.low noise
4.Power-saved. The total motor power is much lower than normal design.
Main Girder:
1. Main girder uses bias-rail box type structure, with optimized design and light dead weight.
2. Steel material. Q235B / Q345B.
3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding;this blasting machine can perform blanking, sandblasting, painting and drying.
4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate.

Packaging & Shipping

1. Main girder, ground girder and support legs will be packed by bubble paper;

2. All the electrical parts will be packed by plywood box;

3. Rails will be naked within container.

Our Services

1. Once provide us the requirement, the details technical data and CAD drawing will provide you.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.

FAQ

1. Is your product customized?

Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!

2. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

3. What’s the max lifting capacity of the crane?

Thanks for your question. The max. Lifting capacity of our standard crane are up to 600 ton (the electric hoist are up to 80 t). If this can’t satisfy your working requirement. Please contact us for special customized.

4. The space of my workshop is limited, can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

5. Can the crane work in hazardous environment?

Thanks for your question. .For hazardous environment, please consult our professional sales manager.
