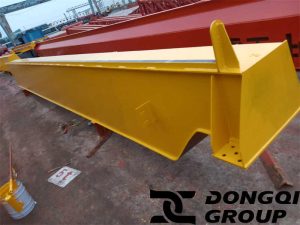

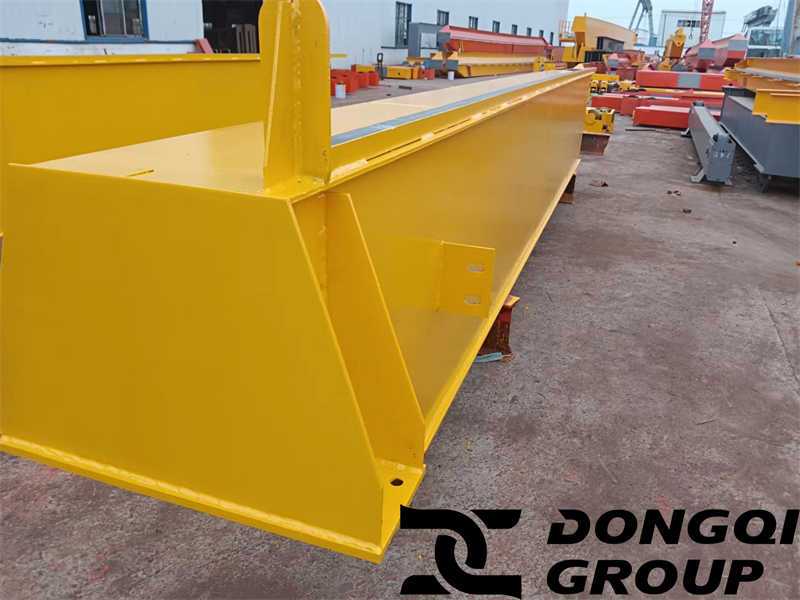

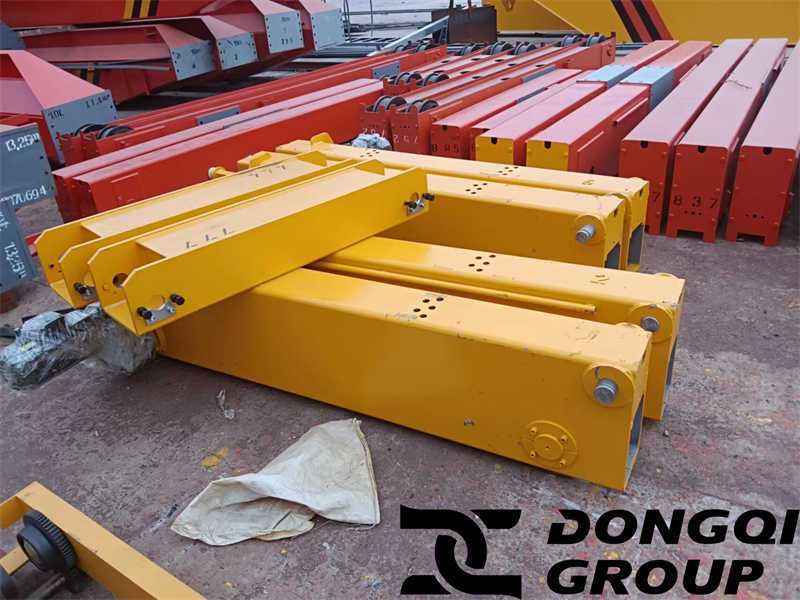

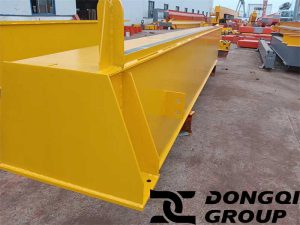

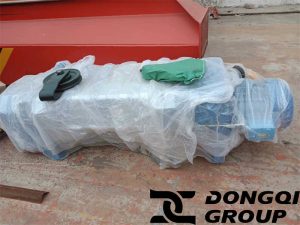

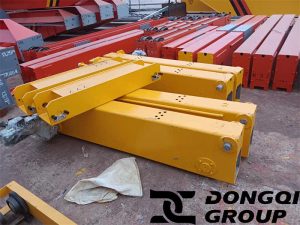

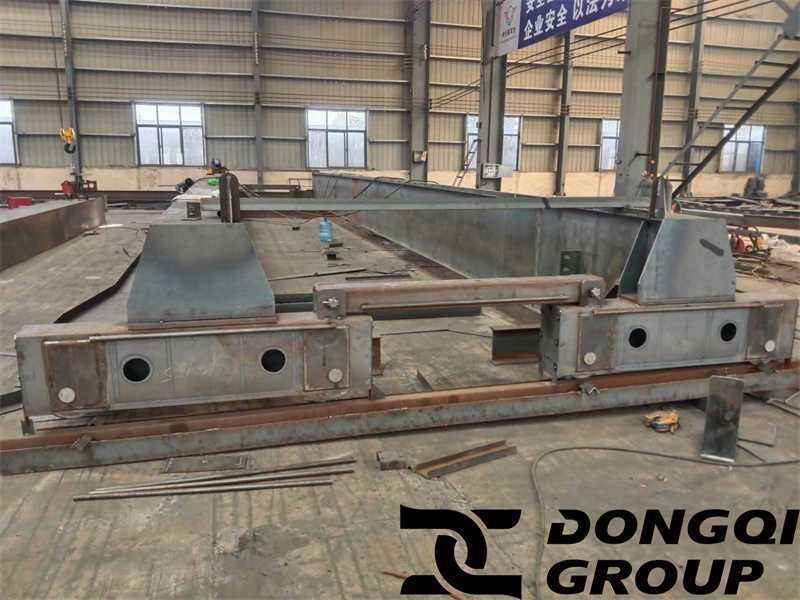

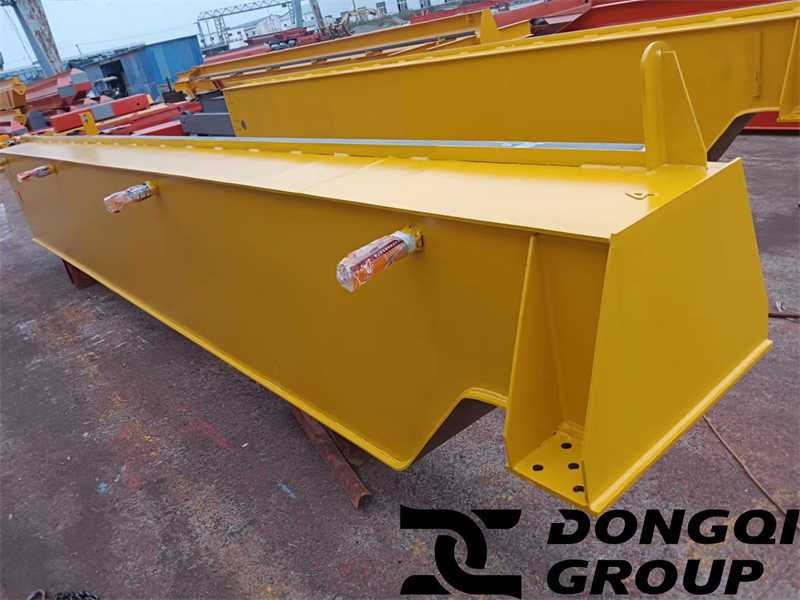

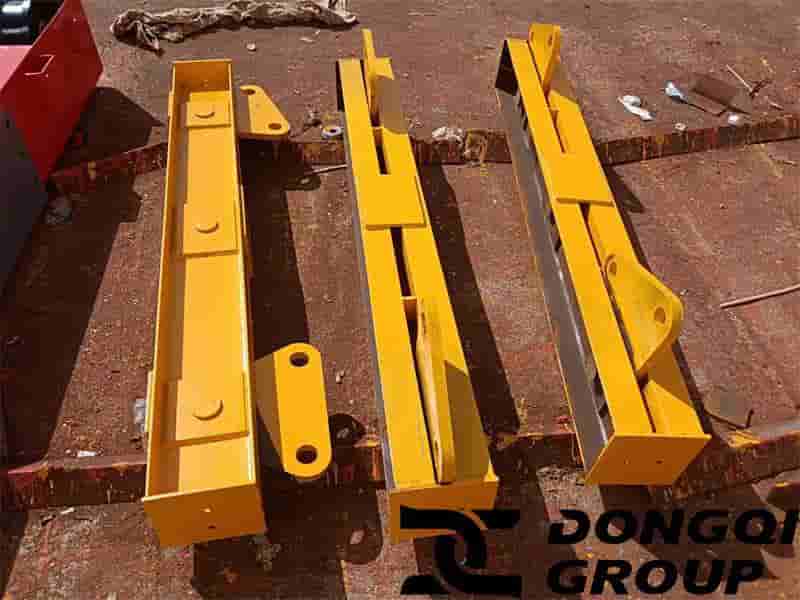

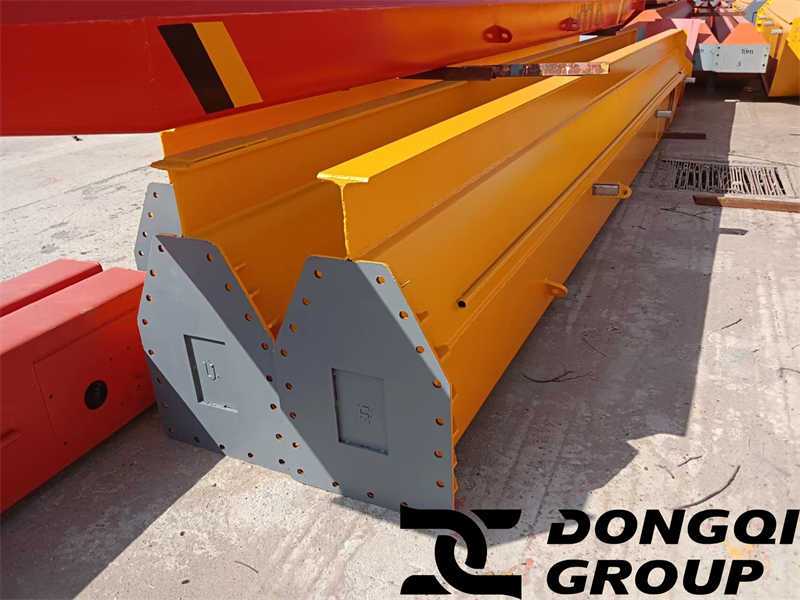

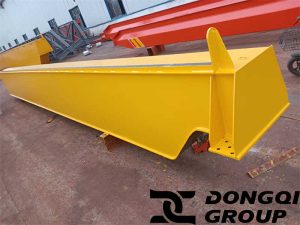

This is an order for overhead cranes sold to Uzbekistan in 2022. The customer purchased 1 LH type 20/5 ton double beam overhead crane and 1 LBX type 6.3-10.5+10.5 ton explosion-proof electric single beam suspension crane from our crane factory. The order was placed at the factory on August 4th, and welding of the main beam began on September 1st. The production of the electric single beam suspension crane was completed on September 8th, and the production of the LH double beam overhead crane was completed on October 8th. We will ship the product to Uzbekistan after the customer pays the final payment. The atlas shows some details of the components of two overhead cranes in the factory. If you would like to learn more about the LH double beam overhead crane and LBX explosion-proof single beam suspension crane, as well as the latest prices of the two types of overhead cranes, please contact us.
LH type electric hoist bridge crane is designed and manufactured according to the standard) b/13695-1994. It is used together with fixed electric hoists such as cd i and md i. The trolley runs on the track laid by the main girder. Overhead crane (crane crane), its applicable lifting capacity is 1-32, the applicable span is 7.5-31.5 meters, and the working environment temperature is in the range of -25-+40 ℃. This product is a general-purpose crane, which is mostly used in machinery manufacturing, assembly, warehouse and other places with low application frequency or fixed lifting capacity with few lifting times. Advantages: better stability during use, making full use of the headroom of the workshop to obtain a higher effective lifting height, moderate price; disadvantages: low working level, not suitable for heavy workshops. The crane has no bottom surface, control room and remote control. The control room has two forms of end face and side door opening for users to choose.
LBX is an explosion-proof electric single beam suspension crane, usually used in conjunction with BCD explosion-proof electric hoist on the basis of LX suspension crane. The running track of the suspension crane uses I-beam steel, and both ends of the main beam are suspended under the I-beam steel for front and rear operation. It is a small tonnage lifting equipment.
Parameter
Purpose
LX type single beam suspension cranes are mostly used in machinery manufacturing, assembly workshops, warehouses, and other places
Structural Advantages
The main beam of this machine is a box and I-steel welded structure, which has the advantages of beautiful appearance and small volume while ensuring strength, stiffness, and stability. The main and end beams are connected in a split structure, which is convenient for transportation and installation. This product is equipped with two types of operation: ground and control room. The control room is available in two types: open and closed, and the entry direction is available in two types: side and end, for users to choose according to different requirements.
