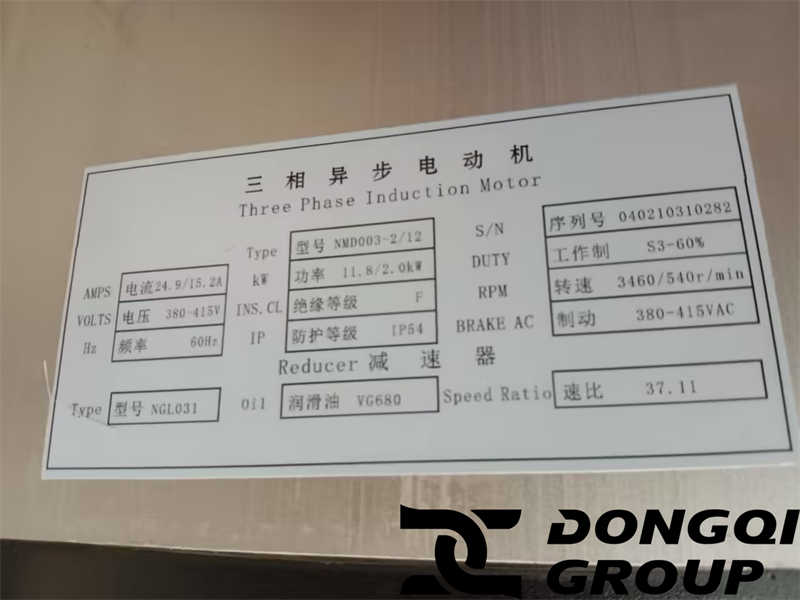

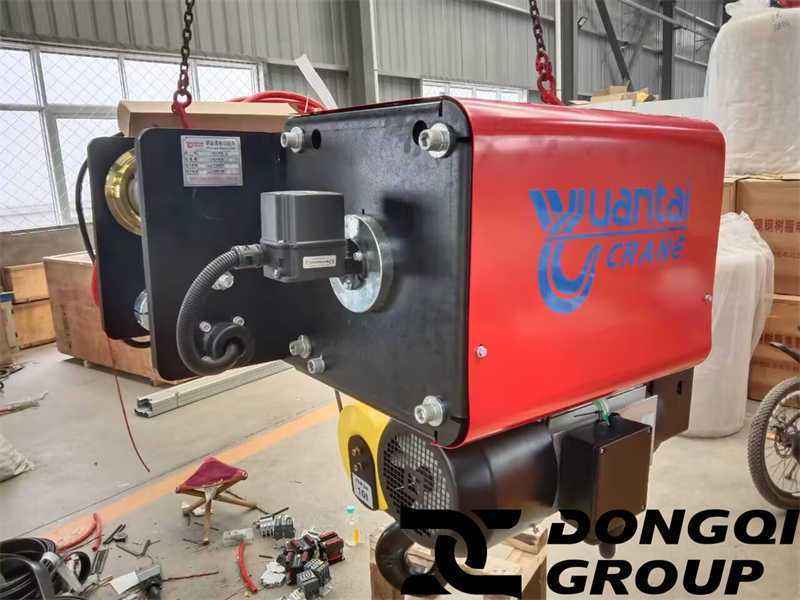

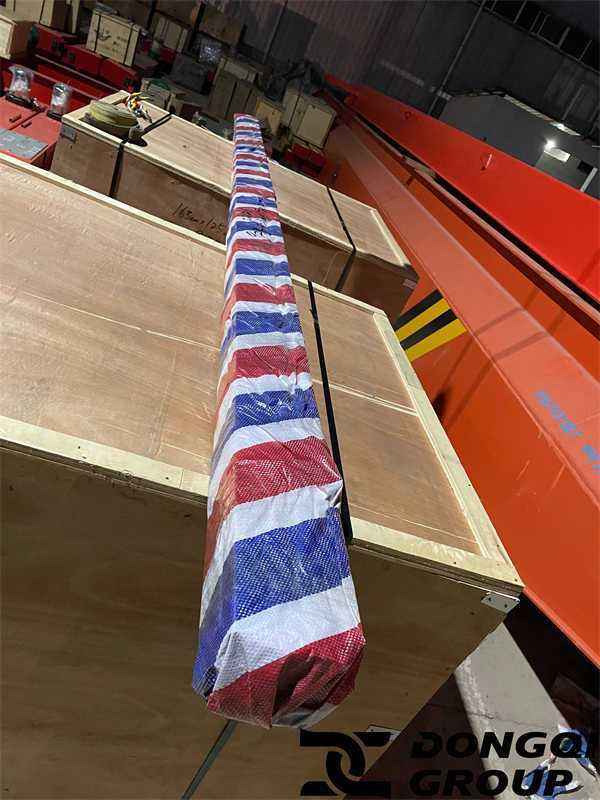

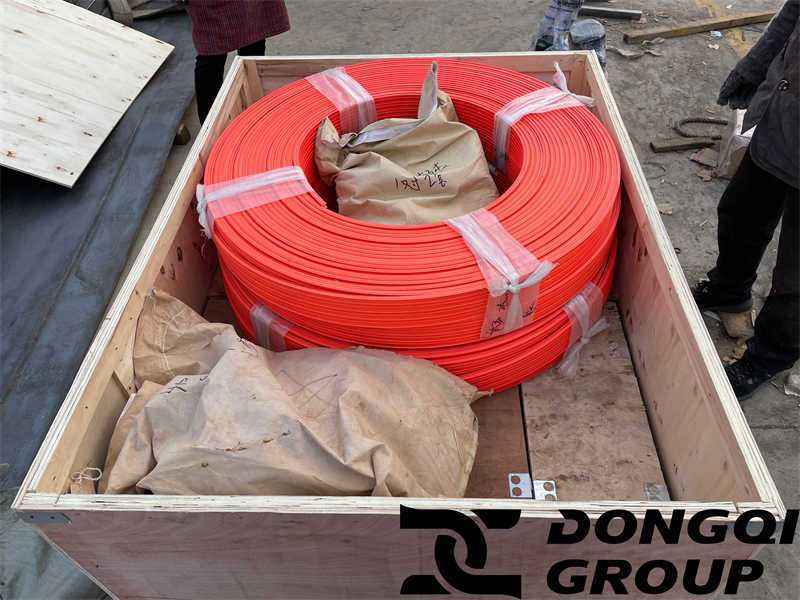

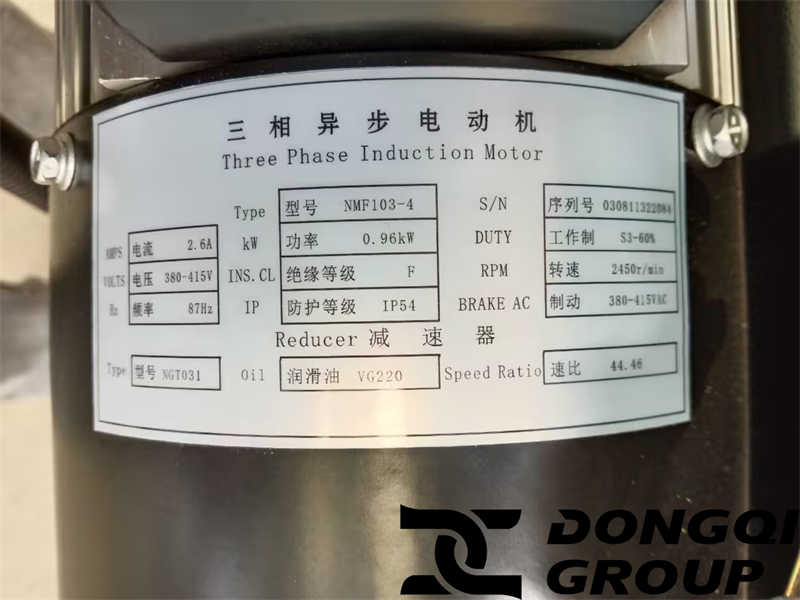

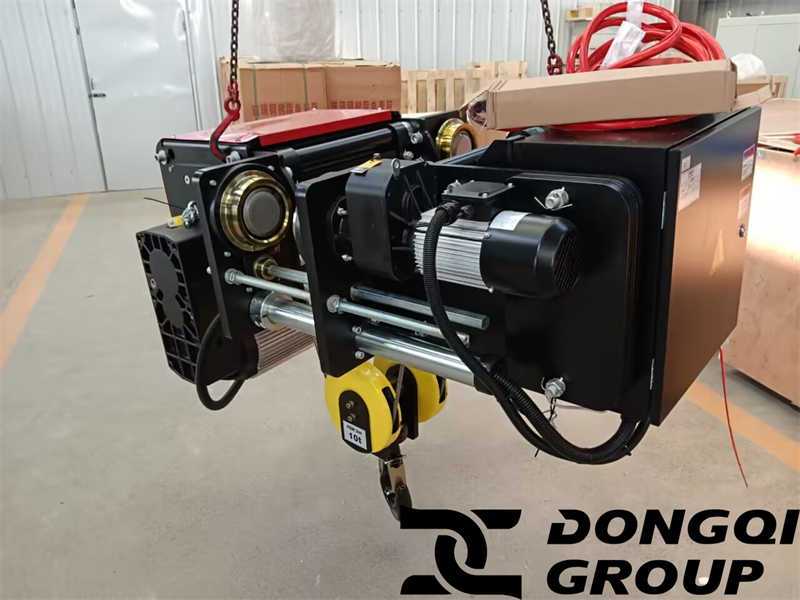

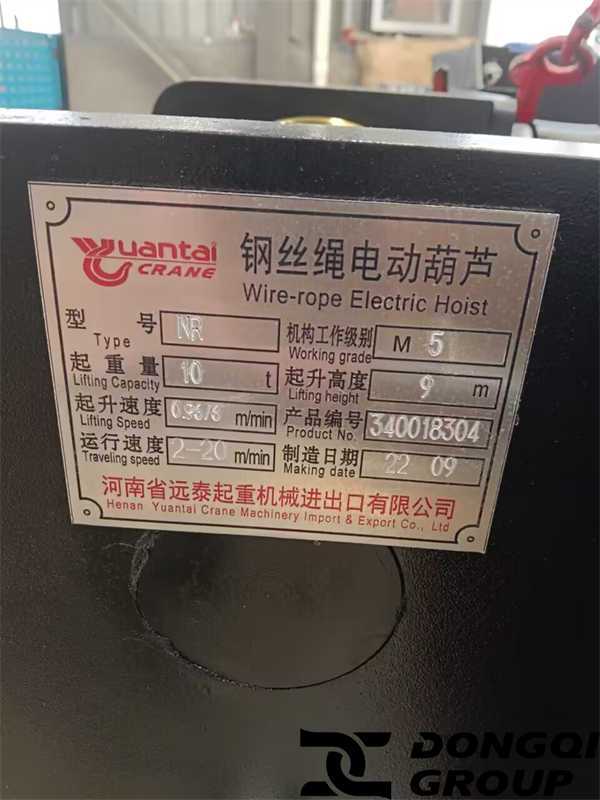

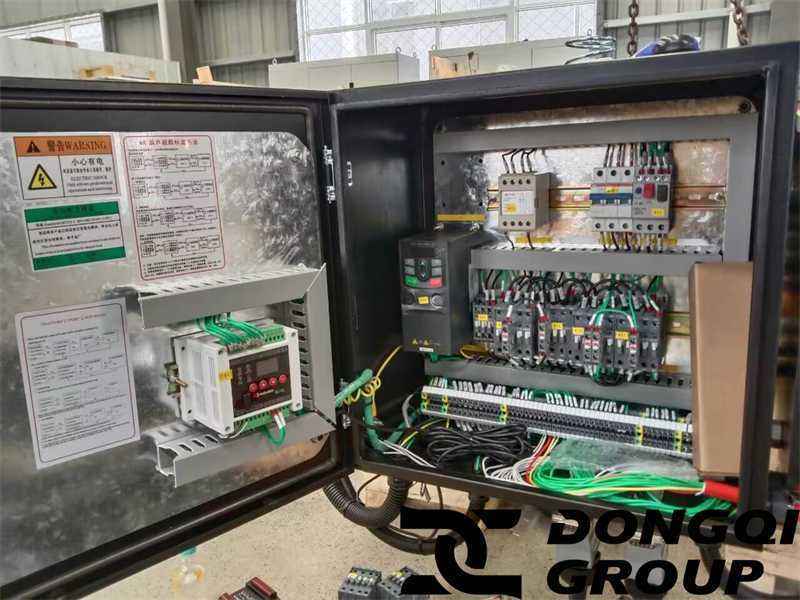

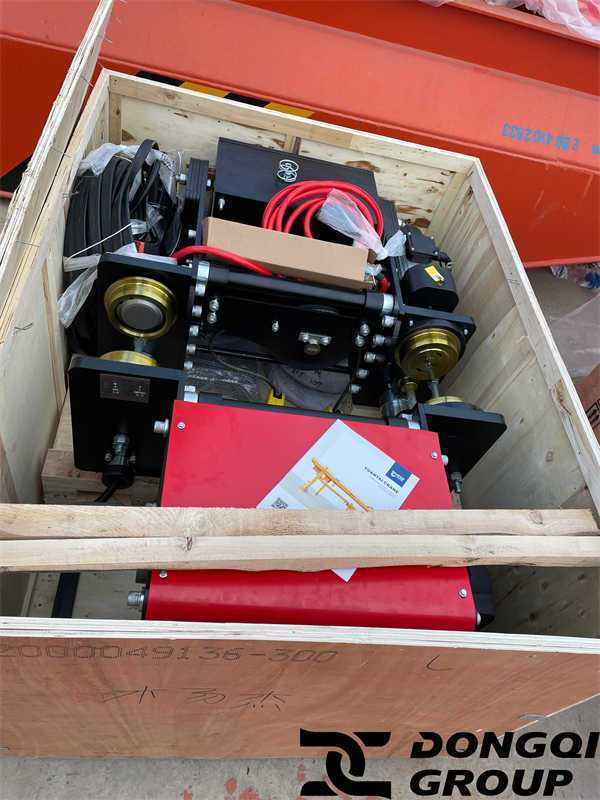

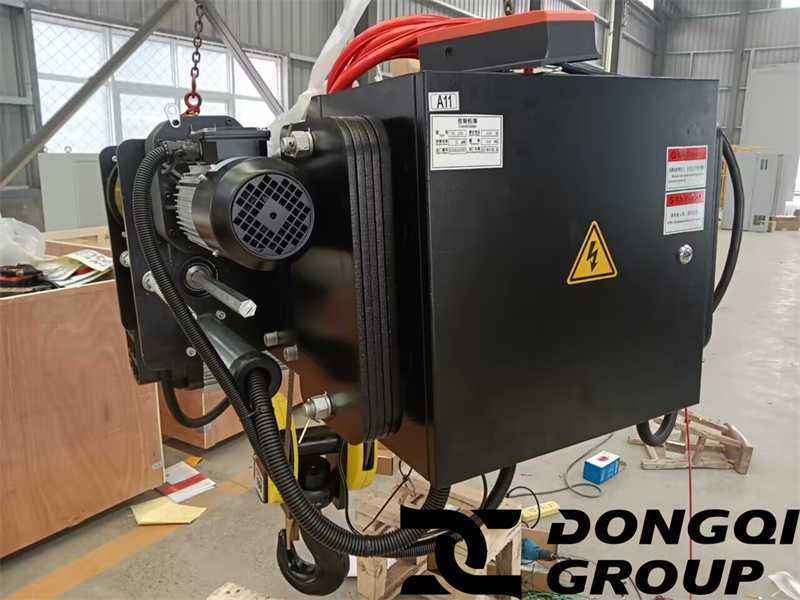

This is an order for overhead cranes sold to Saudi Arabia in 2022. The customer purchased 4 HD 10 ton overhead cranes from our crane factory. Due to cost considerations, the customer did not purchase the main beams. The main beams of the HD crane will be purchased locally in Saudi Arabia. The combination of HD overhead crane and European electric wire rope hoist can improve the utilization rate of factory clearance. The order was placed at the factory on August 30th, and the production of NR European style steel wire rope hoist was completed on October 9th. The production task was completed on November 1st, and a debugging video was sent to the customer for confirmation. We will ship the product to Saudi Arabia on November 17th. The atlas shows some details of NR European electric wire rope hoist and HD crane accessories in the factory. If you would like to learn more information about HD overhead cranes and the latest prices for 10 tons of overhead cranes, please contact us.
HD crane is a kind of low headroom crane, usually used in factory workshops with low space height, which can effectively use the space height and increase the lifting height.
The HD electric single-girder crane is independently developed and designed on the basis of introducing advanced European design and manufacturing technology and combining the latest domestic standards such as GB3811-2008 and JB/T1306-2008. The appearance is beautiful, and the driving mechanism adopts KONE three-in-one reducer (hard tooth surface reducer, frequency conversion brake motor), which is completely comparable to similar European products in terms of appearance and technical performance. Its superior performance is reflected in the mature application of modular design, frequency conversion speed regulation, automatic detection and other technologies, and various protection functions such as overload protection, overcurrent protection, and voltage loss protection make the electric single beam more perfect.
HD electric single-girder crane is suitable for working in the environment conditions of working level A3～A5, working environment temperature -25℃～+40℃, relative humidity ≤85% and no flammable, explosive or corrosive medium. The lifting capacity is 1-16 tons, and the span is 7.5-25.5 meters. The crane power supply is three-phase AC with a rated frequency of 50Hz or 60Hz. The rated voltage is 220V ~ 660V. The upper and lower limits of the allowable voltage fluctuation of the motor are ±10%, and the internal voltage loss of the crane is not more than 3%.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Overhead Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
