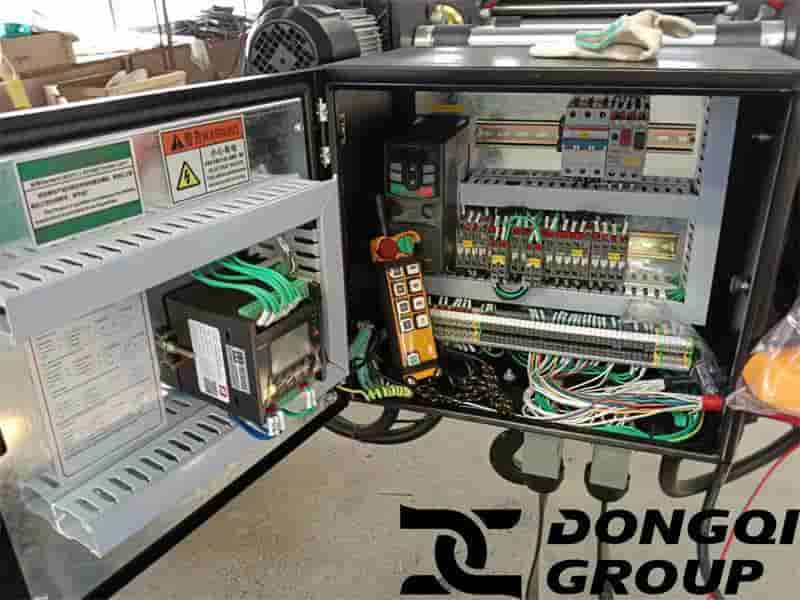

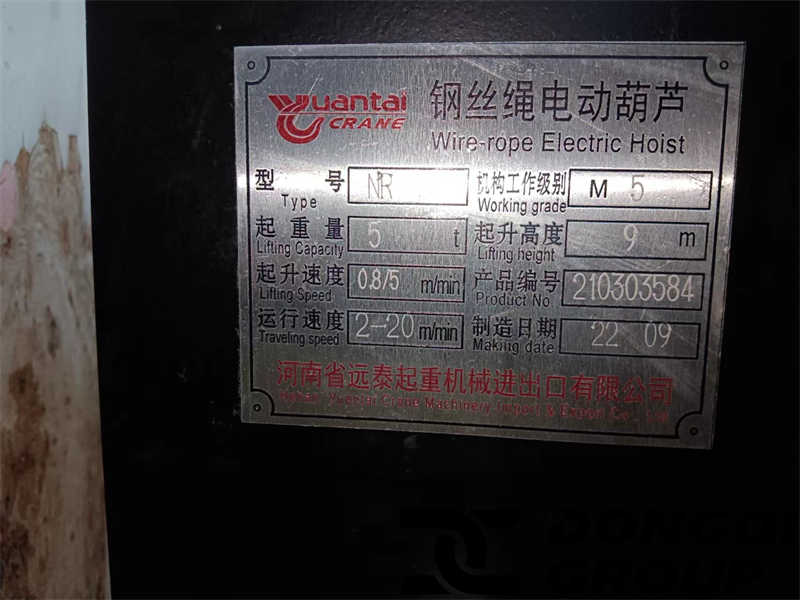

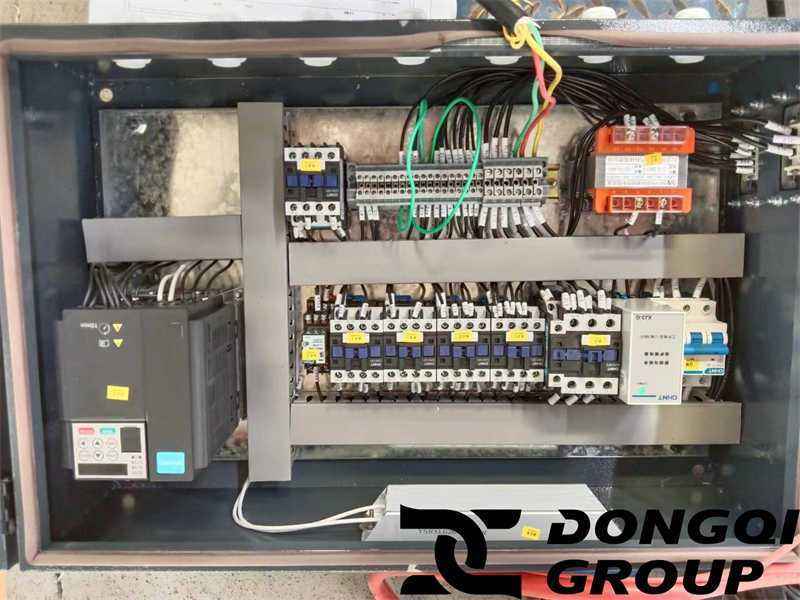

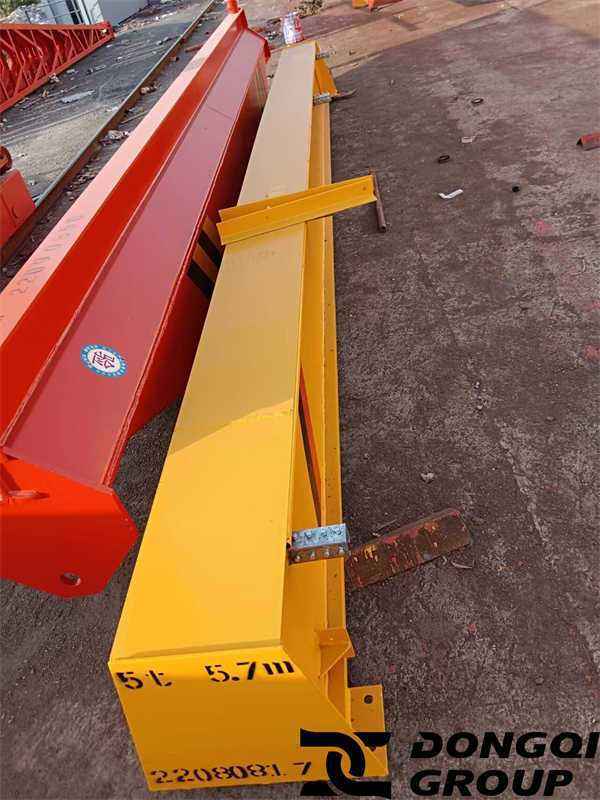

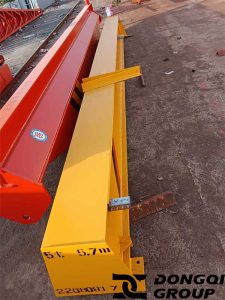

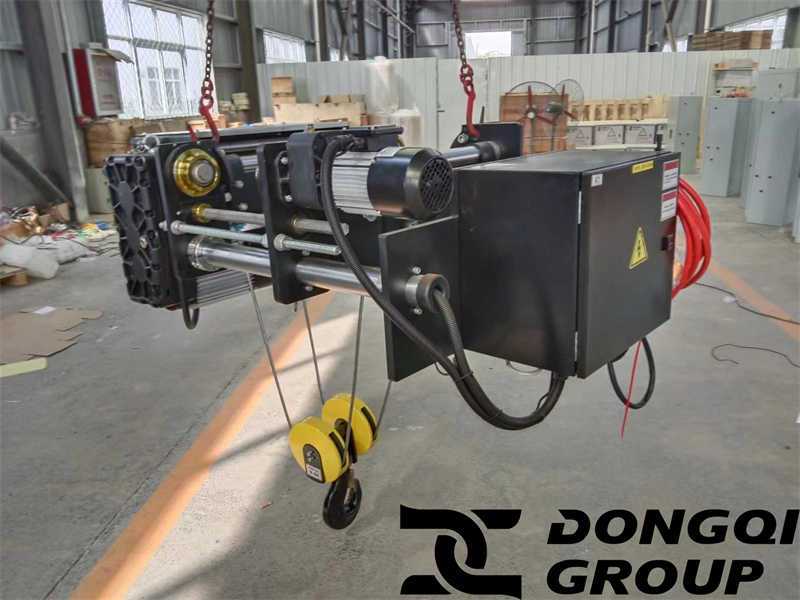

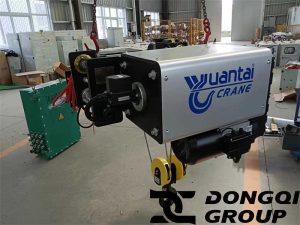

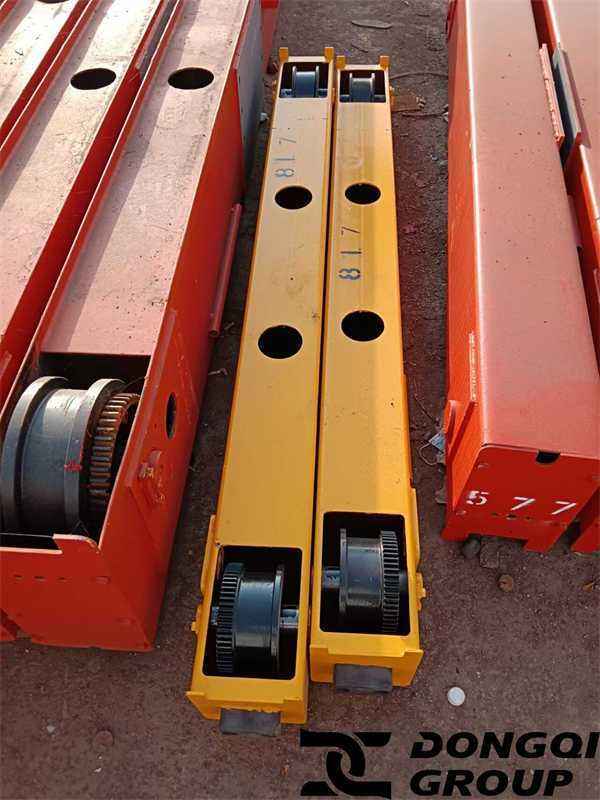

This is an overhead crane sold to Ethiopia in 2022. The customer has purchased one HD type 5-ton overhead crane from our crane factory. This overhead crane, paired with NR type European electric wire rope hoist, can improve the headroom utilization rate of the factory workshop. The order was placed at the factory on August 25th, production was completed on September 22nd, and the product debugging video was sent to the customer for confirmation on September 30th. We will send the product to Ethiopia after receiving the customer's shipping information. The atlas shows some details of HD overhead cranes and NR European electric hoists in the factory. If you would like to learn more about HD overhead cranes and the latest prices for 5-ton overhead cranes, please contact us.
HD crane is a kind of low headroom crane, usually used in factory workshops with low space height, which can effectively use the space height and increase the lifting height.

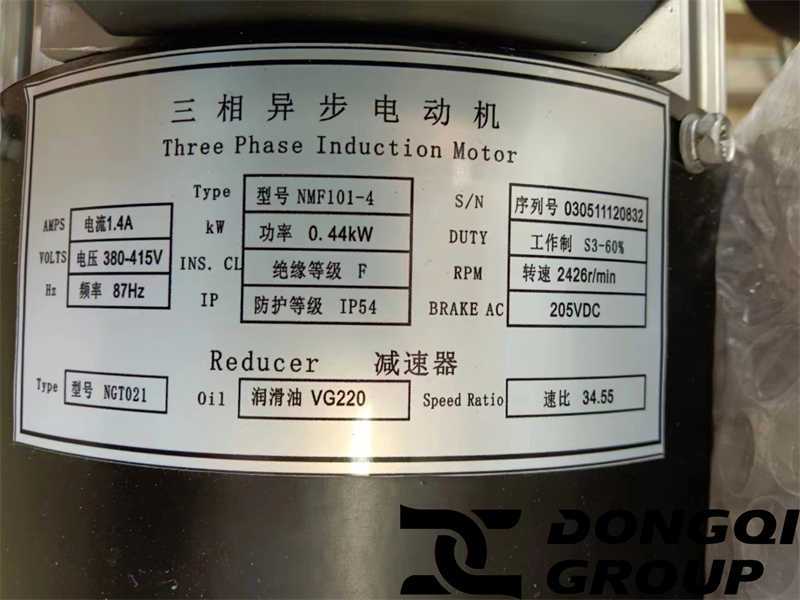

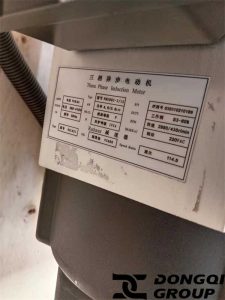

The HD electric single-girder crane is independently developed and designed on the basis of introducing advanced European design and manufacturing technology and combining the latest domestic standards such as GB3811-2008 and JB/T1306-2008. The appearance is beautiful, and the driving mechanism adopts KONE three-in-one reducer (hard tooth surface reducer, frequency conversion brake motor), which is completely comparable to similar European products in terms of appearance and technical performance. Its superior performance is reflected in the mature application of modular design, frequency conversion speed regulation, automatic detection and other technologies, and various protection functions such as overload protection, overcurrent protection, and voltage loss protection make the electric single beam more perfect.
HD electric single-girder crane is suitable for working in the environment conditions of working level A3～A5, working environment temperature -25℃～+40℃, relative humidity ≤85% and no flammable, explosive or corrosive medium. The lifting capacity is 1-16 tons, and the span is 7.5-25.5 meters. The crane power supply is three-phase AC with a rated frequency of 50Hz or 60Hz. The rated voltage is 220V ~ 660V. The upper and lower limits of the allowable voltage fluctuation of the motor are ±10%, and the internal voltage loss of the crane is not more than 3%.
