L-leg gantry crane made in China is used in Pakistan steel coil factory

We recently completed a crane order from Lahore, Pakistan, and the customer wanted to customize a 20-ton gantry crane for steel coil handling. After inspecting the customer's factory, we recommended the l-leg gantry crane to the customer. After a more detailed communication design, the installation test was finally completed in the customer's factory recently. Today we share with you this case to show you what is an L-leg gantry crane

What is L leg gantry crane

The electric trolley gantry crane is a mid –light type gantry crane, equipped with electric and crane hooks, with the obvious features of “ L” shape legs, which makes the crane more convenient for handling cargo with long length, such as, steel pipe, etc. The lifting capacity of the electric trolley gantry crane is 5 to 32 ton and working class is A5 and A6. The parameters are as following:

• Gantry Crane Product Type： L
• Gantry Crane Lifting Capacity： 5~32t
• Gantry Crane Span Length： 18~35m
• Gantry Crane Working Class： A5, A6
• Gantry Crane Ambient Temperature：-25~40℃

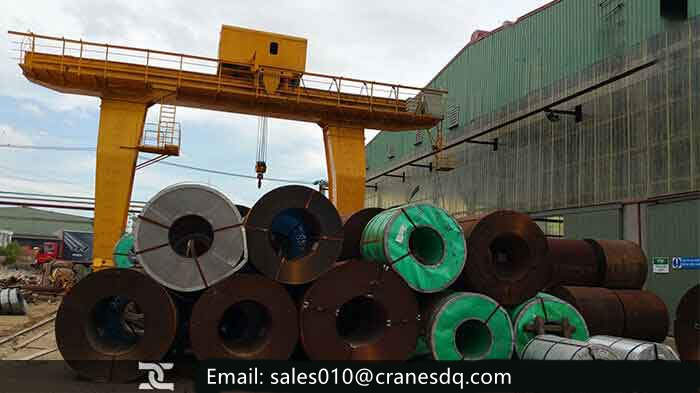

L leg gantry crane for steel coil handling in Pakistan

The L-shaped gantry crane has simple structure, convenient manufacturing and installation, and low quality. The main beams of the L-shaped gantry crane are mostly off-track box frame structures. Compared with the double-beam gantry crane, the overall rigidity is weaker, so When the lifting weight Q≤50t and the span S≤35m, this form can be adopted. The L-shape is easy to manufacture and install, has good stress, and its own mass is small. However, the space for lifting goods through the outriggers is relatively small

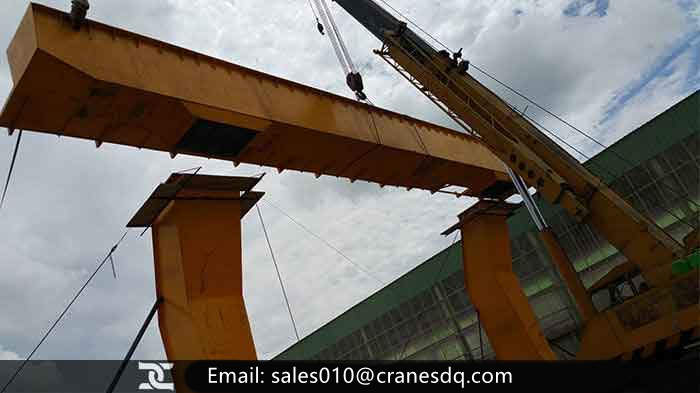

L-leg gantry crane installed in Pakistan factory

L-type gantry crane is suitable for loading, unloading and handling of various materials in open places, warehouses, stockyards, railway freight stations, ports and wharfs. It is widely used in logistics transportation. It can also be equipped with a variety of special slings for special operations

Other different types of gantry crane cases in Pakistan

• 16 ton European-spec Double Girder Gantry Crane (MGO) for sale to Pakistan
• Truss Gantry Crane Applied in Pakistan Bridge Construction
• 10 ton single beam gantry crane solves problems for Pakistan’s construction industry
• How do overhead cranes and gantry cranes help cement plants solve handling problems
• Pakistan Cement Plant Customizes Gantry Crane from China
• 20 ton gantry crane used in Pakistan road construction
• L-leg gantry crane made in China is used in Pakistan steel coil factory
• The 32 ton gantry crane customized from China was installed in Pakistan
• How to send 25t gantry crane to Pakistan
• 40 ton container gantry crane is sold from China to Pakistan
• How to buy a 25 ton Single beam hoist gantry crane in Pakistan
• Gantry crane for sale Pakistan

How to customize gantry crane from China

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a gantry crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:

• Lifting capacity (ton): __ ?( The rated capacity)
• Lifting height (m):__ ? (Height from hook center to the floor)
• Span (m): __ ? (Distance between rail center)
• Lifting speed (m/min): __ ? ( Single, Dual, Variable)
• Traveling distance (m): __ ? (The length of the rail)
• Work duty: __ ? (How many hours a day? How many times an hour?)
• What material to be lifted: __ ?
• Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
