LD type 2-ton single beam overhead crane sold to Nigeria in 2023

Table of Contents

LD type overhead crane procurement parameters

Order time: 2023.3.21
Lifting capacity: 2 ton
Lifting height: 3.5 meters
Span: 4.65 meters
Working voltage: 380v/50hz/3p
Order content: LD type 2 ton overhead crane
Exporting country: Nigeria

This is an order for overhead cranes sold to Nigeria in 2023. The customer purchased one LD type 2-ton electric single beam overhead crane from our crane factory, with a lifting height of 3.5 meters. The order was placed at the factory on March 21st and production was completed on April 12th. The atlas shows some details of the order in the factory. If you would like to learn more about the LD type overhead crane and the latest price for a 2-ton single beam overhead crane, please contact us.

Brief Introduction of LD Electric Single Girder Bridge Crane

LD electric single-girder bridge crane is a lifting machine with simple structure and wide application. The whole machine is used together with CD₁ and MD₁ electric hoists. There are ground (wired and wireless) and control room control modes for the crane, which can be selected by users.

Parameter

Lifting capacity: 1, 2, 3, 5, 10, 16, 20, 25, 32 tons (can be customized according to actual requirements)
Span: 7.5m-34.5m (can be customized according to actual requirements)
Lifting height: can be customized according to actual requirements
The working level is A3～A5
Working environment temperature -25°C～40°C

Use

It is mostly used in machinery manufacturing, assembly workshops and warehouses. If it is equipped with a motor grab as a spreader, it can load, unload and carry bulk items. It is not suitable to work in the environment with explosion hazard and fire hazard, nor in the place with high humidity or full of acid and alkali gas, nor can it be used to transport molten metal, toxic materials and flammable and explosive materials.

Structural advantages

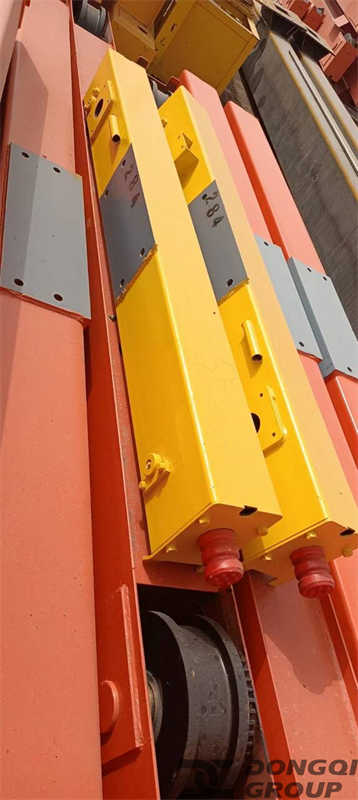

The main girder of this machine is a box-shaped and I-shaped steel welded structure, which has the advantages of beautiful appearance and small size on the basis of ensuring strength, rigidity and stability. The main and end beams are connected by a split structure, which is convenient for transportation and installation. This product has two manipulation forms: ground and control room. There are two types of control room: open type and closed type, and the entry direction has two types: side and end, for users to choose according to different requirements.

The other overhead crane cases in Nigeria

How to customize Overhead Crane in Nigeria

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Overhead Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:

Lifting capacity (ton): __ ?( The rated capacity)
Lifting height (m):__ ? (Height from hook center to the floor)
Span (m): __ ? (Distance between rail center)
Lifting speed (m/min): __ ? ( Single, Dual, Variable)
Traveling distance (m): __ ? (The length of the rail)
Work duty: __ ? (How many hours a day? How many times an hour?)
What material to be lifted: __ ?
Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
