Recently, in the process of communicating with a Pakistani customer, we encountered an interesting problem. The customer needs to customize a crane for outdoor handling, but we are hesitant about what kind of crane to choose. We have given three schemes, one is portable gantry crane, the other is jib crane and the third is overhead crane. According to the customer's description, we mainly recommend the first two, and the third is the scheme designed at the customer's insistence. In all scheme designs, we will fully respect the opinions of customers, but we would like to see customers have a deeper understanding of cranes.
With the help of this case, we will share some small details about single beam overhead crane today.
Overhead cranes are widely used in various factories. In addition to general mechanical workshops, single beam bridge cranes are widely used in workshops, warehouses and material yards such as petroleum and petrochemical, railway construction, civil aviation airports, hydropower stations, ports, papermaking, building materials, metallurgy, etc.

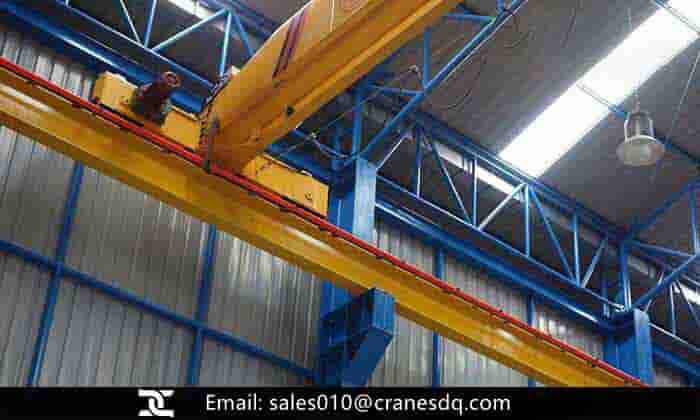

Single girder eot crane installation in Pakistan

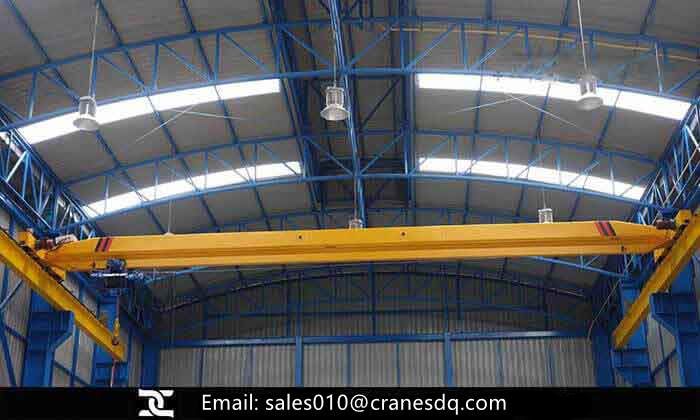

Single girder eot crane installation in Pakistan

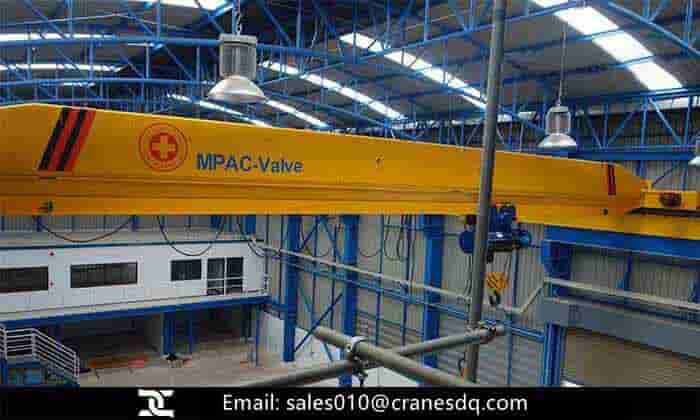

Single girder eot crane installation in Pakistan

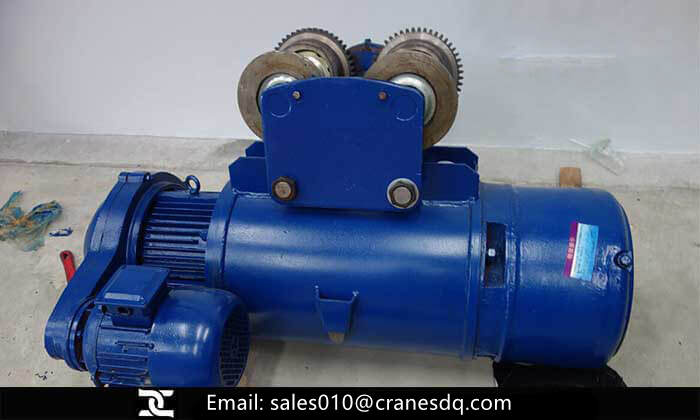

Double speed electric eot crane hoist for single girder eot crane
The lifting mechanism, trolley operating mechanism and crane operating mechanism are the three working mechanisms of the crane. Each mechanism is equipped with a separate motor for their own drive.
The crane with lifting capacity of 5 and 10 tons is a single hook crane with only one set of lifting mechanism.
16 / 3.2 ~ 50 / 10 ton cranes have two hooks, so there are two sets of independent lifting mechanisms, main and auxiliary.
The main hook is used to lift heavy objects. In addition to lifting lighter objects, the auxiliary hook can also be used to cooperate with the main hook to tilt or overturn workpieces within its rated load range.
However, it must be noted that two hooks are not allowed to lift two objects at the same time. When the two hooks work together, the weight of the object shall not exceed the rated lifting capacity of the main hook.
Dongqi offers FEM underslung single girder eot crane, Explosion proof single girder eot crane, Electric hoist single girder eot crane, Low Headroom single girder eot crane, , Suspension single girder eot crane for sale, etc. If you need, please feel free to contact us.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a overhead crane, you can leave a message on the website or email us: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
