Types of chain block sold by Dongqi crane

Dongqi Crane provides a variety of customized crane services to the world. Among the lifting equipment sold by Dongqi, we introduce the chain block to you today.

Manual chain hoist is a simple and convenient manual lifting machinery, also known as “hand chain hoist” or “chain block”.It is suitable for the short distance lifting of small equipment and goods, and the weight is generally not more than 100 ton. Hand chain hoist shell material is high quality alloy steel, strong wear resistance, high safety performance.

Types of chain block sold by Dongqi crane

The chain hoists sold in Dongqi are mainly divided into CB Type, VC Type, HS-Z Type, CK Type, HS-T Type, SK Type, and VN Type. These chain hoists are widely used, and we will recommend suitable types for customers according to different usage scenarios.

Types and Application of CB Type Manual Chain Hoist

CB series chain block is one kind of using simply and carrying easily manual hoisting machinery. It’s suitable for installing machinery, hoisting up cargo, loading and unloading vehicles of the factory, the mine, the construction site, the agricultural production as well as the wharf, the dock, the warehouse. Especially regarding open-air and non-power source work, CB chain hoist has its important function.

CB series chain block can be used with all kinds of manual single-track driving vehicles, which can be used in single rail overhead transportation, manual single-beam bridge crane and cantilever crane.

CB type manual chain hoist is divided to CB-I series and CB-II series


CB-I Type Manual Chain Hoist Design Drawing

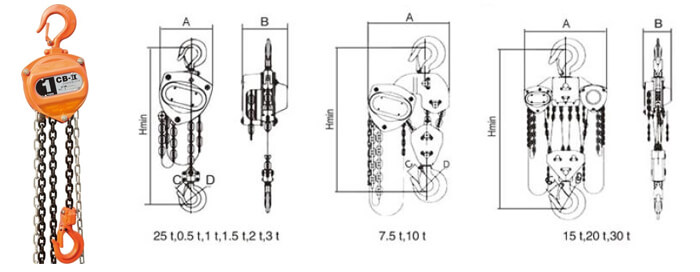

CB-II Type Manual Chain Hoist Design Drawing

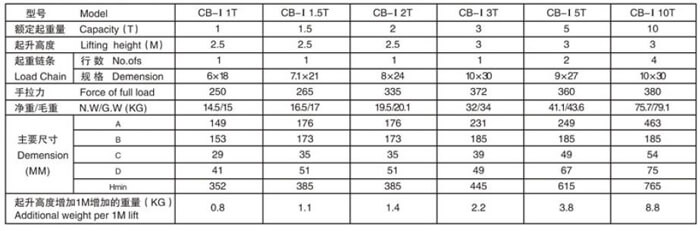

CB-I Main Performance and Technical Specification


CB-II Main Performance and Technical Specification


VC Type Manual Chain Hoist

VC type manual chain hoist is divided into VC-A type and VC-B type.

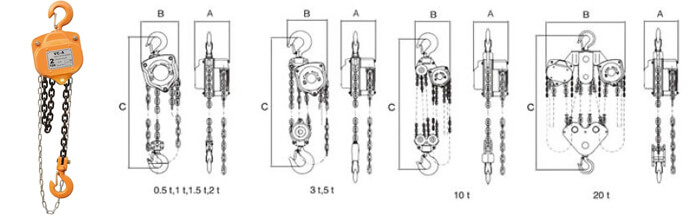

VC-A Type Manual Chain Hoist Design Drawing


VC-A Type Manual Chain Hoist Characteristics

  • Anti-external impact of the gear box and outer cover
  • Double outer cover to keep out rain and dust
  • Safe and reliable braking performance (mechanical clutch)
  • Double pawl spring, the hoist durability enhancement
  • Hooks for strength and practicality
  • High precision toughness gear
  • Load chain guide mechanism, finely fabricated from wrought iron
  • High strength load chain

VC-A Type Main Performance and Technical Specification

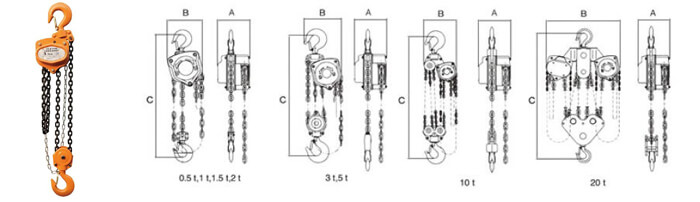

VC-B Type Manual Chain Hoist Design Drawing


VC-B Type Manual Chain Hoist Characteristics

  • Double pawls automatic anti-failure brake mechanism for safety operation
  • Durable friction disc with longer life
  • Unique design of the chain guide wheel
  • Heat treated wall panels, various gears and long and short shafts have higher strength
  • Hooks and chains are subjected to quenching and tempering heat treatment
  • Upper and lower lifting hooks are forged and has safety latches

VC-B Type Main Performance and Technical Specification

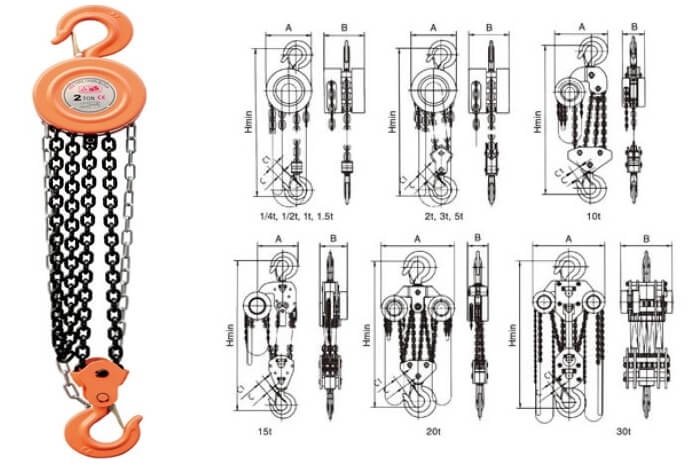

HS-Z Type Manual Chain Hoist

HS-Z type chain hoist is a widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source.


HS-Z Manual Chain Hoist Main Performance and Technical Specification

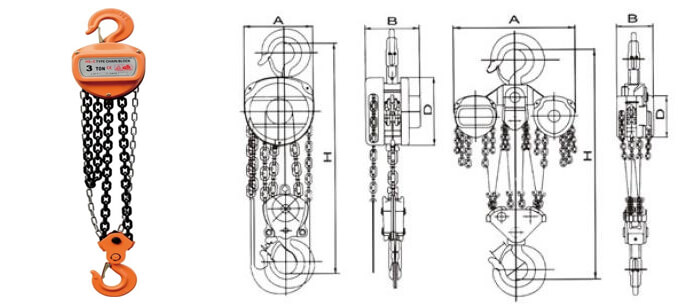

HS-C Type Manual Chain Hoist

HS-C series chain hoist is the product of the advanced technology of the world in the form of HS-Z hand chain block. In addition to the traditional features of the HS-Z type chain hoist, HS-C type hand chain block has more small hand pull, high safety factor, beautiful appearance, more suitable.


HS-C Type Manual Chain Hoist Product Features

  • Compact structure, light weight and durable
  • High mechanical efficiency, small hand tension
  • Safe and easy to maintain
  • The distance between the two hooks is small, especially suitable for small working space

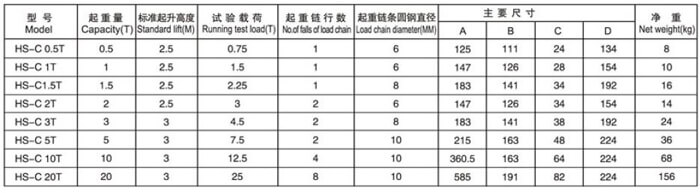

HS-C Manual Chain Hoist Main Performance and Technical Specification

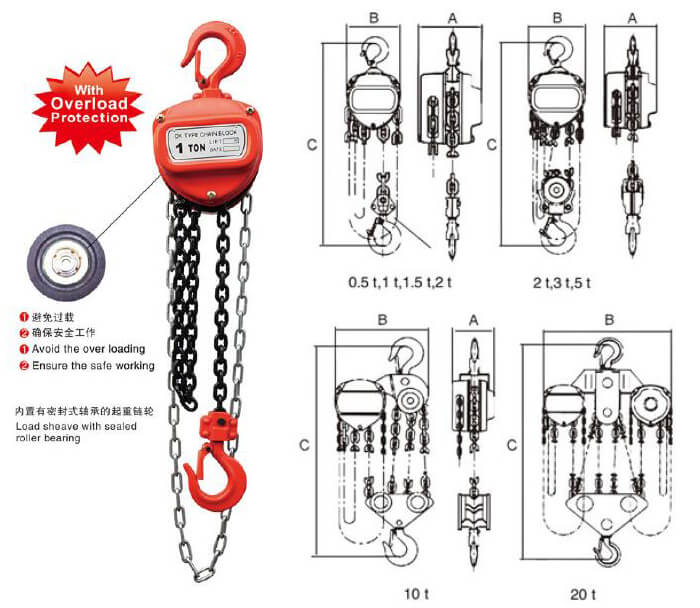

CK Type Manual Chain Hoist

CK series chain hoist is the product of the advanced technology of the world in the form of HS-C hand chain block. In addition to the traditional features of the HS-C type chain hoist, CK type hand chain block has more small hand pull, high safety factor, beautiful appearance, more suitable.

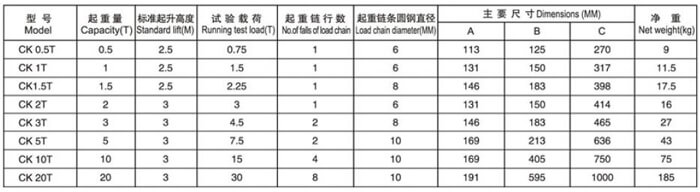

CK Manual Chain Hoist Main Performance and Technical Specification


HS-T Type Manual Chain Hoist

HS-T type chain hoist is a widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source.


HS-T Manual Chain Hoist Main Performance and Technical Specification


SK Type Manual Chain Hoist

SK type chain hoist is a widely used manual hoisting machinery which is easy to use and carry. It can be used in factory, mine, agriculture, electricity, construction site, wharf and dock. And it can also be used in installing of machinery, lifting, loading and unloading in the warehouse, especially suitable to be used in the open air and the place without power source.


SK Type Manual Chain Hoist Product Features

  • Compact structure, light weight and durable
  • High mechanical efficiency, small hand tension
  • Safe and easy to maintain
  • The distance between the two hooks is small, especially suitable for small working space
  • High mechanical efficiency, unique bearing structure

SK Manual Chain Hoist Main Performance and Technical Specification

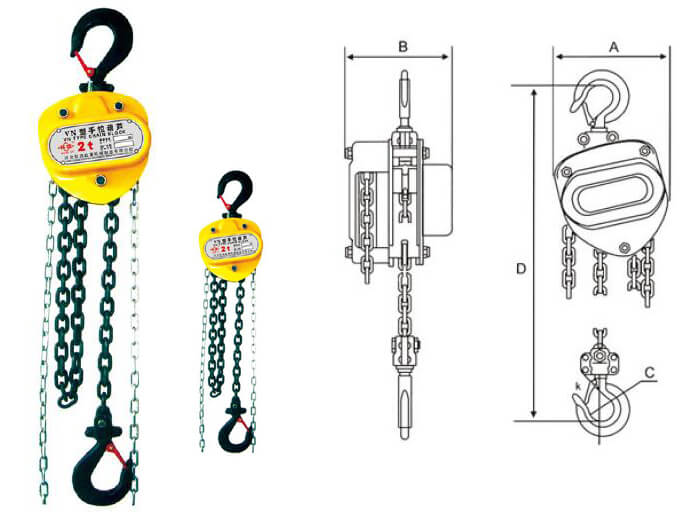

VN Type Manual Chain Hoist

VN series chain block is one kind of using simply and carrying easily manual hoisting machinery. It’s suitable for installing machinery, hoisting up cargo, loading and unloading vehicles of the factory, the mine, the construction site, the agricultural production as well as the wharf, the dock, the warehouse. Especially regarding open-air and non-power source work, VN chain hoist has its important function.

VN series chain block can be used with all kinds of manual single-track driving vehicles, which can be used in single rail overhead transportation, manual single-beam bridge crane and cantilever crane.


VN Manual Chain Hoist Main Performance and Technical Specification
